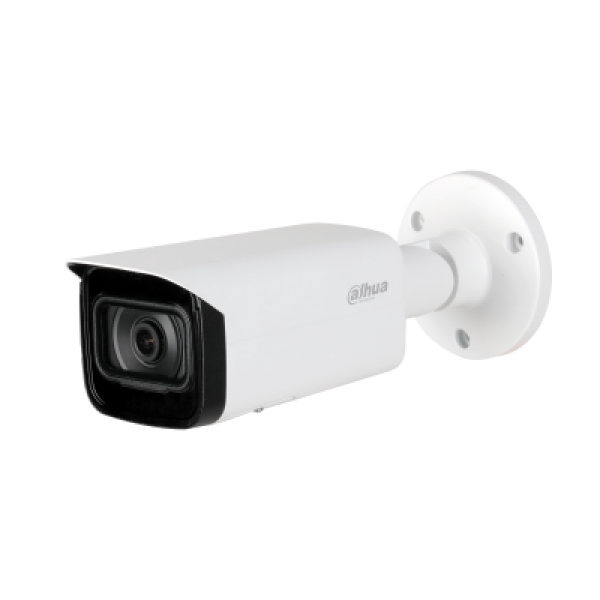

Manufacture: Dahua | Model: DH-IPC-HFW5541TP-SE-0280B
The WizMind Series is designed for project-oriented applications. Equipped with a deep learning algorithm, this camera enables advanced AI face recognition with attribute filtering by gender, age, glasses, mask, beards, and emotional expressions such as anger (compatible with AI Series NVRs). It provides advanced AI features including people counting, privacy protection, heat mapping, ultra long-distance monitoring, thermal imaging, and smart tracking for compatible cameras supporting these functions.
Dahua's Starlight Technology generates clear color images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
| Image Sensor | 1/2.7” 5Megapixel progressive scan CMOS |
| Effective Pixels | 2592 (H) × 1944 (V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
| Minimum Illumination | 0.005 [email protected] |
| IR Distance | Distance up to 80 m (262 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 4 |
| Lens Type | Fixed-focal |
| Mount Type | Board-in |
| Focal Length | 2.8 mm, 3.6 mm, 6.0 mm, 8.0 mm, 12.0 mm |
| Max. Aperture | F1.6 (2.8 mm–8.0 mm), F2.0 (12.0 mm) |
| Angle of View | H: 102°, V: 71° / H: 84°, V: 58° / H: 51°, V: 37° / H: 38°, V: 28° / H: 25°, V:18° |
| Aperture Type | Fixed |
| Close Focus Distance | 0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft)/4.5 m (14.73 ft)/10.3 m (33.79 ft) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Face Detection | Support face image capture |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection, and people gathering |
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| Object Abandoned/Missing | Yes |
| Heat Map | Yes |
| Compression | H.265, H.264, H.264B, H.264H, MJPEG (sub stream) |
| Smart Codec | Yes |
| Streaming Capability | 3 Streams |
| Resolution | 2592 × 1944 / 2688 × 1520 / 2560 × 1440 / 2304 × 1296 / 1080P (1920 × 1080) / 1.3M (1280 × 960) / 720P (1280 × 720) / D1 (704 × 576 / 704 × 480) / VGA (640 × 480) / CIF (352 × 288 / 352 × 240) |
| Frame Rate (Main Stream) | 2592 × 1944 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps) |
| Frame Rate (Sub Stream) | D1 (1 fps–20/30 fps) D1 (1 fps–50 fps) |
| Frame Rate (Third Stream) | 1080P (1 fps–17 fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC Mode | BLC/HLC/WDR (120 dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off/On (4 Zone, Rectangle) |
| Region of Interest | Off/On (4 Zone) |
| Smart IR | Yes |
| Defog | Yes |
| Flip | 0°/90°/180°/270° |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 Area, Rectangle) |
| Network | Ethernet RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 20 Users |
| Edge Storage | NAS; FTP; SFTP Micro SD card 256 GB |
| Web Viewer | IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12) |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | iOS, Android |
| Certifications | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power Supply | DC 12V (±30%), PoE (802.3af) (Class 0) |
| Power Consumption | <8.4W |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F)/Less than 95% RH |
| Storage Conditions | -30°C to +60°C (-22°F to +140°F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”) |
| Net Weight | 0.815 kg (1.80 lb) |
| Gross Weight | 1.08 kg (2.38 lb) |
