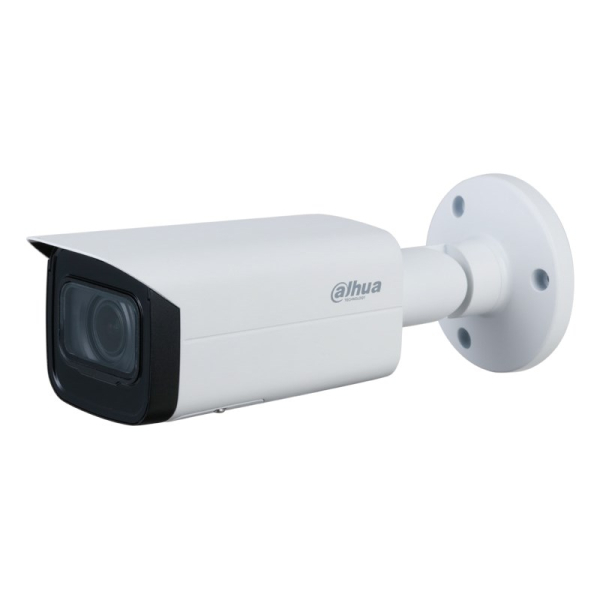

Dahua 4MP WDR IR Bullet Network Camera with 2.7-13.5mm Motorized Lens Wizsense

Sku: DH-IPC-HFW3466TP-ZAS-AUS

Availability: Out of Stock

Brand: Dahua

Category: IP Cameras

$270.60

Dahua WizSense Series offers AI-powered cameras with advanced human and vehicle detection. Featuring SMD 4.0, Starlight technology, and 4MP resolution, these cameras provide reliable, simple, and affordable security with minimal false alarms.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Dahua | Model: DH-IPC-HFW3466TP-ZAS-AUS



Dahua WizSense Series 4MP Camera

Launched by Dahua Technology, WizSense is a series of wide-range AI products and solutions that adopt independent AI chips and deep learning algorithms. It can recognize humans and vehicles in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on humans and vehicles, benefiting everyone with intelligent functions, simple configuration, and inclusive products.

SMD 4.0: With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms. Additionally, SMD 4.0 can detect the color information of clothing and vehicles, providing data support for quick searches after an event.

WizSense Series - Engineered to provide smart, simple, and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees, and animals.

Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees, and animals. The target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.

Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Starlight Technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.



Key Features



  • 4-MP 1/3" CMOS image sensor, excellent low luminance performance and high definition of images.
  • Outputs max. 4 MP (2688 × 1520) @25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, max. IR distance: 60 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire (supports classification and accurate detection of vehicles and humans).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 input, 1 output (Only - ZAS supports); audio: 1 input, 1 output (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
  • 12 VDC/PoE power supply facilitates installation.
  • IP67, IK10 (optional) protection.
  • SMD 4.0, AI SSA.

Image Sensor 1/3" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 60 m (196.85 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View Horizontal: 104°–29°
Vertical: 54°–16°
Diagonal: 125°–33°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
IVS (Perimeter Protection) Tripwire, intrusion (supports classification and accurate detection of vehicle and human)
AI SSA Yes
Quick Pick With AI NVR, quickly pick up human/vehicle targets from SMD events
Smart Search Works with Smart NVR for refined intelligent search, event extraction, and merging
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
Alarm Event -ZAS & ZS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
Network Port RJ-45 (10/100 Base-T)
Storage FTP; SFTP; Micro SD card (max. 256 G); NAS
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.8 W (12 VDC); 3.6 W (PoE)
Max: 7.9 W (12 VDC); 9.2 W (PoE)
Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F) / Less than 95% RH
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Protection IP67
Casing Metal
Product Dimensions 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 3.00") (L × W × H)
Net Weight 820 g (1.81 lb)
Gross Weight 1090 g (2.40 lb)
