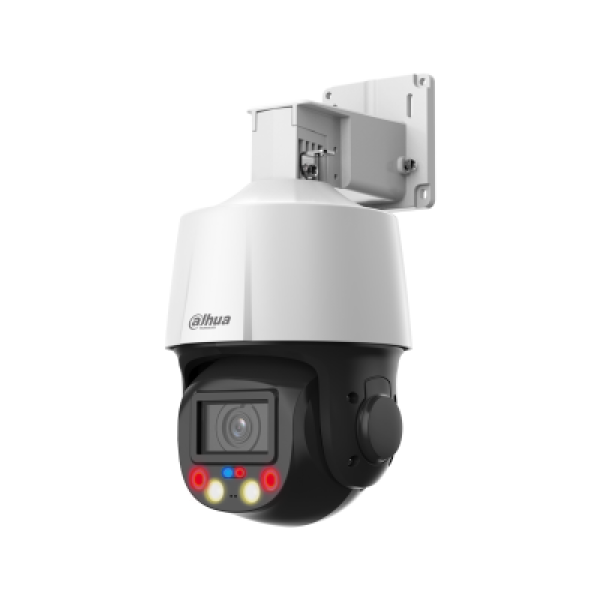

Dahua 4MP 5x TiOC WizSense Network PTZ Camera

Sku: DH-SD3E405DB-GNY-A-PV1

Availability: Out of Stock

Brand: Dahua

Category: IP Cameras

$363.00

Discover the advanced features of a 4 MP surveillance camera with 2560×1440 resolution, 5x optical zoom, 50m IR illumination, 120 dB WDR, and auto tracking. Supports H.264 and H.265 video compression, motion detection, and smart alarm systems for effective security monitoring.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Dahua | Model: DH-SD3E405DB-GNY-A-PV1



Launched by Dahua Technology, WizSense is a series of AI-driven products and solutions that utilize an independent AI chip and deep learning algorithm. It is designed to focus on human and vehicle detection with high accuracy, enabling users to respond quickly to defined targets. Leveraging Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive surveillance solutions.



Key Features:



  • 1/2.8" 4-Megapixel CMOS sensor for high-resolution imaging
  • 5× optical zoom for detailed and flexible monitoring
  • Supports up to 25/30fps@4M for smooth video playback
  • Infrared (IR) illumination up to 50m for night vision
  • Warm light illumination with a range of up to 30m
  • Smart Motion Detection (SMD) 3.0 for enhanced accuracy
  • Advanced perimeter protection with AI-powered analytics
  • Face detection for intelligent identification and security
  • Built-in microphone and speaker for two-way talk functionality
  • Alarm input/output (1 in, 1 out) and audio input/output (1 in, 1 out)
  • 12 VDC/PoE power supply for flexible installation

Image Sensor 1/2.8" CMOS
Pixel 4 MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 128 MB
RAM 512 MB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination (Color) 0.005 lux@F1.6
Min. Illumination (B/W) 0.0005 lux@F1.6
Illumination Distance (IR) 50 m (164.04 ft)
Illumination Distance (Warm light) 30 m (98.43 ft)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number (IR) 2
Illuminator Number (Warm light) 2
Illuminator Number (Red light) 1
Illuminator Number (Blue light) 1
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.6–F3.0
Field of View (H) 94.9°–30.1°
Field of View (V) 51°–17.1°
Field of View (D) 112.3°–34.6°
Optical Zoom 5×
Focus Control Auto; semi-auto; manual
Close Focus Distance 1.5 m (4.92 ft)
Iris Control Fixed
DORI Distance (Detect) 270 m (885.83 ft)
DORI Distance (Observe) 106.6 m (349.74 ft)
DORI Distance (Recognize) 54 m (177.17 ft)
DORI Distance (Identify) 27 m (88.58 ft)
Pan/Tilt Range (Pan) 0° to 355°
Pan/Tilt Range (Tilt) –15° to +90°
Manual Control Speed (Pan) 0.1°/s–36°/s
Manual Control Speed (Tilt) 0.1°/s–25.8°/s
Preset Speed (Pan) 35.7°/s
Preset Speed (Tilt) 27.1°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
Face Detection Supports face detection, snapshot, and face enhancement; Supports face cutout
Auto Tracking Lite Yes
SMD Yes
Active Deterrence (Light Warning) Red and blue light warning, Flash duration: 5 s–30 s, Flash frequency: high, medium, low
Sound Warning Offers 11 types of sound alarms, supports importing up to 10 custom sound alarms
Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
Streaming Capability 3 streams
Resolution 4M (2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576), VGA (640 × 480), CIF (352 × 288)
Video Frame Rate (Main stream) 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Video Frame Rate (Sub stream 1) D1/CIF/VGA @(1–25/30 fps)
Video Frame Rate (Sub stream 2) 720p @(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate (H.264) 96 kbps–14848 kbps
Video Bit Rate (H.265) 38 kbps–8960 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
S/N Ratio ≥55 dB
