Manufacture: Dahua | Model: DH-HAC-HFW2501TUP-Z-A-DP-27135-S2

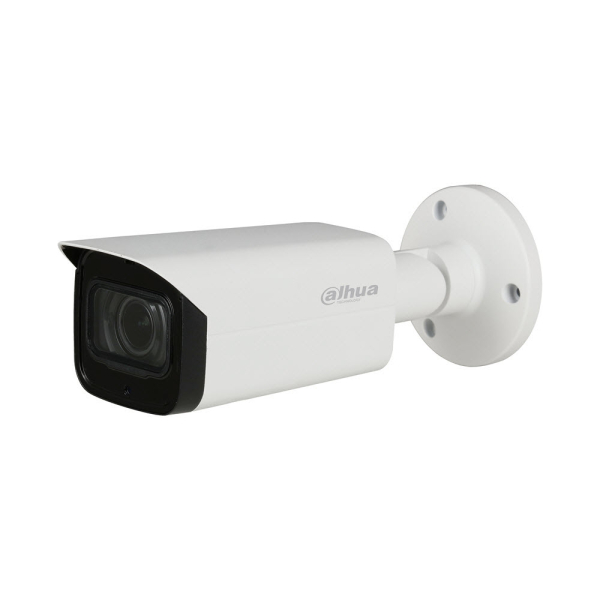

Dahua Security Camera: 5MP Bullet, 2.7-13.5mm HDCVI - HAC-HFW2501TUP-Z-A-DP-27135-S2
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high-quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.6; 30IRE; 0 Lux IR on |
| Illumination Distance | 80 m (262.5 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 4 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Motorized varifocal |
| Auto Focus | Yes |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6 |
| Field of View | Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart Illumination | Yes |
| Digital Zoom | 4x |
| Defog | Electronic defog |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Audio Interface | One channel built-in mic |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power Supply | 24V AC±25%/12V DC±10% |
| Power Consumption | Max. 12.5W (12V DC, IR on) |
| Operating Temperature | –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) |
| Storage Temperature | –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56") |
| Net Weight | 0.79 kg (1.7 lb) |
| Gross Weight | 1.07 kg (2.4 lb) |
