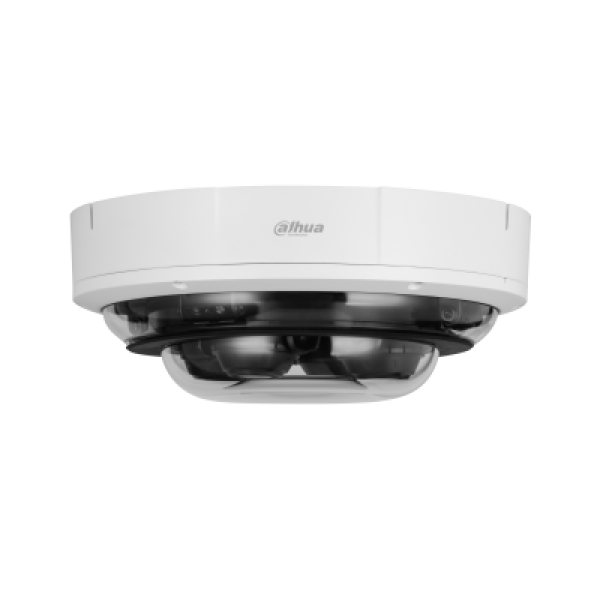

Manufacture: Dahua | Model: DH-IPC-PDBW82041-B360-S2
The 5MP AI-Powered Security Camera is a high-performance surveillance solution designed for advanced monitoring and analytics. Featuring a 1/2.7-inch CMOS sensor with 2592×1944 resolution, it delivers crisp and detailed video with exceptional low-light performance. Equipped with a motorized vari-focal lens (2.8mm-12mm), the camera provides a flexible field of view ranging from 100° to 42°. Smart IR technology ensures up to 30m (98ft) of night vision, while AI-driven analytics enable intelligent detection, including face recognition, people counting, and perimeter protection. With support for H.265+ and H.264 video compression, the camera optimizes bandwidth and storage efficiency. Its rugged design includes electronic image stabilization (EIS), defog mode, and 3D noise reduction, making it ideal for outdoor and high-security applications. The device supports three video streams and is compatible with smart NVRs for advanced event extraction and intelligent search.
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination (Color) | 0.005 [email protected] (30 IRE) |
| Min. Illumination (B/W) | 0.0005 [email protected] (30 IRE) |
| Min. Illumination (Illuminator On) | 0 lux |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 8 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–75°; Rotation: 0°–355° |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.7 |
| Field of View | H: 100°–42°; V: 74°–32°; D: 133°–53° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| IVS | Abandoned object; Missing object |
| IVS (Perimeter Protection) | Tripwire; Intrusion; Fast moving (supports classification of vehicle and human); Loitering detection; People gathering; Parking detection |
| Face Detection | Face detection; Track; Snapshot; Snapshot optimization; Face enhancement; Face exposure; Face attributes extraction (gender, age, glasses, expressions, mask, and beard); Expressions: Angry, Sad, Disgusted, Scared, Surprised, Calm, Happy, Confused; Face snapshot set as face or one-inch photo |
| People Counting | Tripwire people counting; People counting in area; Queue management; Exporting report (day/month/year) |
| Smart Search | Works with Smart NVR for refined intelligent search, event extraction, and merging to event videos |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Single Stream: Main stream: 2592 × 1944@(1–25/30 fps); Sub stream: 704 × 576@(1–25 fps)/704 × 480 (1–30 fps); Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution (Single Stream) | 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Resolution (Flex Stream) | 8M (3296 × 2472); 5M (2592 × 1944); UXGA (1600 × 1200); 1080p (1920 × 1080); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–17152 kbps; H.265: 12 kbps–10240 kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; Natural; Street lamp; Outdoor; Manual; Regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Image Rotation | Yes |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
