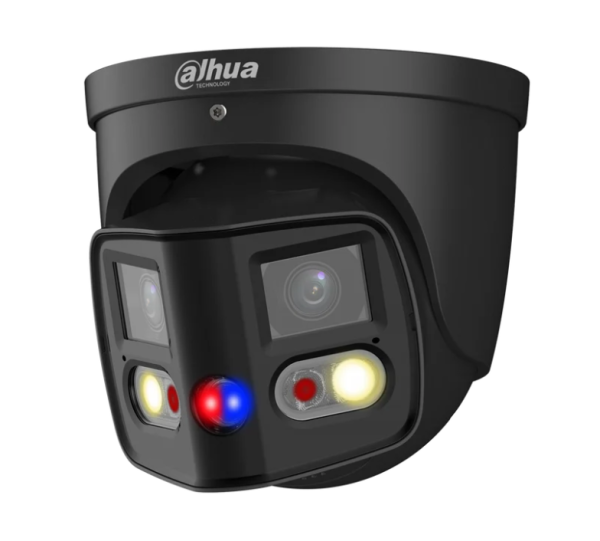

Dahua 2x4MP TiOC Duo Splicing Fixed focal Eyeball WizSense Network Camera Black

Sku: DH-IPC-PDW3849-A180-AS-PV-ANZ-BLK

Availability: Out of Stock

Brand: Dahua

Category: IP Cameras

$368.50

Dahua TiOC 2.0 Three-in-One Cameras offer advanced security with WizSense AI, Active Deterrence, and 24/7 Full-Colour Nightvision. Featuring AI Smart Motion Detect 4.0, AI Scene Self-Adaptation, 2-way audio, and powerful deterrence through strobe lights and alarms, these cameras provide reliable, real-time protection.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Dahua | Model: DH-IPC-PDW3849-A180-AS-PV-ANZ-BLK



Dahua's Three-in-One Cameras 2.0 (TiOC 2.0) integrate multiple layers of protection into one single system. A TiOC surveillance system features WizSense AI, Active Deterrence, and 24/7 Full-Colour Night Vision as well as two-way audio.

WizSense AI offers quick, quality, and reliable surveillance while minimizing false alarms. AI Smart Motion Detect 4.0 alerts you only when detecting humans or vehicles, ignoring insects, branches, and other irrelevant objects. Recognizing changes in image quality, AI Scene Self-Adaptation adjusts settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the color of clothing or vehicles when paired with a Dahua WizSense NVR.

Active Deterrence turns your system into a responsive security solution that uses strobe lights and audio warnings or alarms to deter intruders.

24/7 Full-Colour maximizes visual clarity in relevant situations by utilizing LED lights to brighten the area in the event of a detected intrusion.



Key Features



  • Outputs 180° wide-angle splicing image.
  • Outputs max. 8 MP (4096 × 1860) @20 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED and warm light, max. IR illumination distance is 25 m, and warm light distance is 20 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Alarm: 1 input, 1 output; audio: 1 input, 1 output; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker, supports two-way talk.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • EPTZ: Enlarge and track the targets of intelligent alarms.
  • SMD 4.0.
  • One-tap arming/disarming through alarm input.

Image Sensor Dual 1/2.7" CMOS
Max. Resolution 4096 (H) × 1860 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 25 m (IR LED)
Up to 20 m (Warm light)
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Field of View Horizontal: 180°; Vertical: 86°
Max. Aperture F1.4
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Frame Rate Main stream: 4096 × 1860@(1–20 fps)
Sub stream: 1200 × 530@(1–20 fps)
Third stream: 1920 × 860@(1–20 fps)
Resolution 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 6 kbps –16384 kbps
H.265: 6 kbps –16384 kbps
Built-in MIC Yes, dual Mic
Built-in Speaker Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; Firmware encryption; Configuration encryption; WSSE; Security logs; HTTPS; Trusted boot
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 3.95 W (12 VDC); 4.95 W (PoE)
Max: 8.7 W (12 VDC); 10.85 W (PoE)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Protection IP67
Casing Metal
Product Dimensions Φ122 mm × 135.2 mm (Φ4.80" × 5.32")
Net Weight 990 g (2.18 lb)
Gross Weight 1150 g (2.54 lb)
