Sku: DIS-S310LX
Brand: D-LINK
Category: Network Accessories
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Transceiver Type: SFP, Distance: 10km, Speed: 1.25Gbps, Connector: Duplex LC Connector, Single/bi Direction: Single-direction, Power: 3.3V, 01 Year Limited Warranty, DIS-S310LX.
We Accept
Manufacture # D-Link | Model # DIS-S310LX

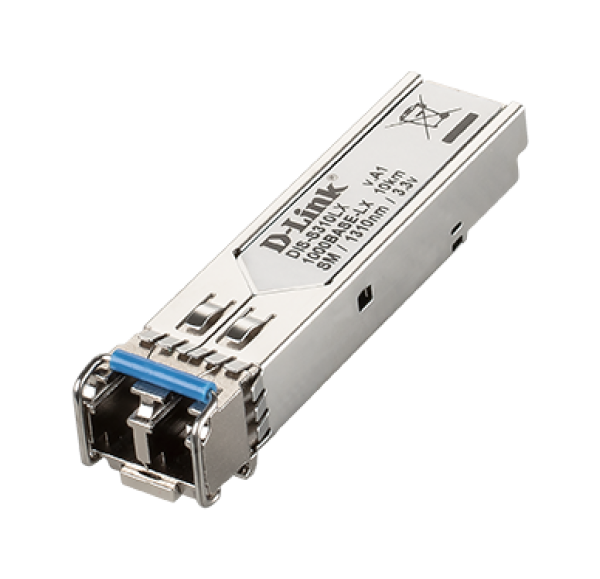

D-Link’s Industrial SFP Optical Transceivers are hot-swappable SFP transceivers that are specifically designed for D-Link Industrial Ethernet switches. The transceivers offer customers a wide variety of connection distance for factory automation, smart and connected city applications.
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Transceiver Type | SFP |
| Fiber Channel FC-PI standard | 100-SM-LC-L |
| Fiber Media support | Single-Mode |
| Distance | 10km |
| Speed | 1.25Gbps |
| Connector | Duplex LC Connector |
| Single/bi Direction | Single-direction |
| Wavelength | 1310nm |
| Output Optical Power (TX Optical Power) | MAX.: -3dBm MIN.: -8 dBm |
| Input Optical Power (RX Optical Power) | MAX.: - 3 dBm MIN.: - 24 dBm |
| Sensitivity | -24dBm |
| Cable Type | Single-mode 9/125um fibre |
| Power | 3.3V |
| Max Input Current | 300mA |
| Power Budget (MIN Power Budget) | 16dB |
| MAX Power Budget | 21dB |
| Heat Generated | 2.376 kJ/h |
| MTBF (hours) | 223,857 hours |
| Operation Temperature | -40~85°C |
| Storage Temperature | -40~85°C |
| Humidity (Operating) | 5%~95% |
| Humidity (Storage) | 5%~95% |
| Dimension ( W x D x H ) | 13.7 x 55.4 x 8.5mm |
| Weight | 20g |
