Sku: DIS-S301SX
Brand: D-LINK
Category: Network Accessories
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Transceiver Type: SFP, Fiber Media support: Multi-Mode, Speed: 1.25Gbps, Connector: Duplex LC Connector, Single/bi Direction: Single-direction, Wavelength: 850nm, 01 Year Limited Warranty, DIS-S301SX.
We Accept
Manufacture # D-Link | Model # DIS-S301SX

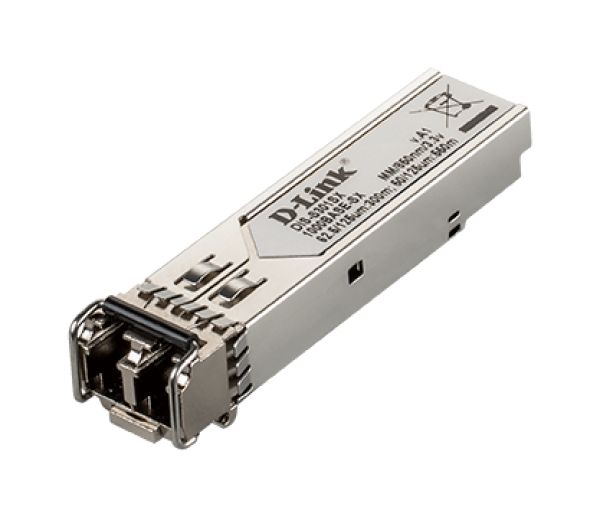

D-Link’s Industrial SFP Optical Transceivers are hot-swappable SFP transceivers that are specifically designed for D-Link Industrial Ethernet switches. The transceivers offer customers a wide variety of connection distance for factory automation, smart and connected city applications.
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Transceiver Type | SFP |
| Fiber Channel FC-PI standard | 100-M6-SN-I/100-M5-SN-I |
| Fiber Media support | Multi-Mode |
| Distance | 62.5/125um: 300m 50/125um: 550m |
| Speed | 1.25Gbps |
| Connector | Duplex LC Connector |
| Single/bi Direction | Single-direction |
| Wavelength | 850nm |
| Output Optical Power (TX Optical Power) | MAX.: -3dBm MIN.: -8 dBm |
| Input Optical Power (RX Optical Power) | MAX.: - 3 dBm MIN.: - 22 dBm |
| Sensitivity | -22dBm |
| Cable Type | Multi-mode 50/125um or 62.5/125um fibre |
| Power | 3.3V |
| Max Input Current | 300mA |
| Power Budget (MIN Power Budget) | 14d B |
| MAX Power Budget | 19d B |
| Heat Generated | 1.782kJ/h |
| MTBF (hours) | 224,167 hours |
| Operation Temperature | -40~85°C |
| Storage Temperature | -40~85°C |
| Humidity (Operating) | 5%~95% |
| Humidity (Storage) | 5%~95% |
| Dimension ( W x D x H ) | 13.7 x 55.4 x 8.5mm |
| Weight | 20g |
