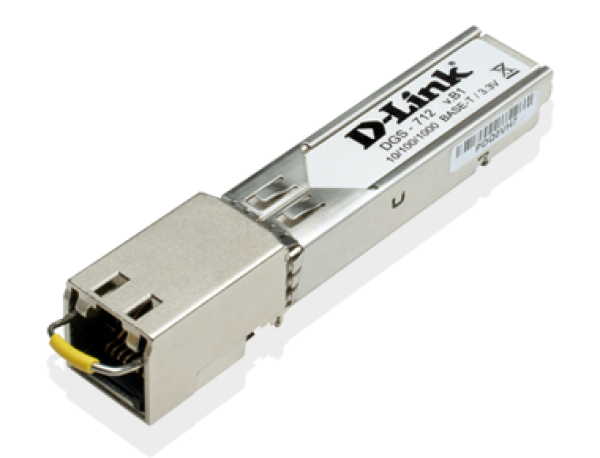

D-Link DGS-712 Gigabit SFP to RJ45 Transceiver

Description

Manufacture # D-Link | Model # DGS-712

D-Links DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement. It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper.

Features:

• Up to 1.25Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Extended case temperature range
• Fully metallic enclosure for low EMI
• Low power dissipation (typical 1.2 watts
• RJ-45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• 10/100/1000 BASE-T operation in host systems with
• SGMII interface
• Gigabit Ethernet over Cat. 5 cable
• +3.3V electrical power interface


Overview:

• Device Type: SFP (mini-GBIC) transceiver module
• Form Factor: Plug-in module
• Connectivity Technology: Wired
• Cabling Type: 1000Base-T
• Data Link Protocol: GigE

Manufacturer Warranty: Lifetime Limited Warranty
