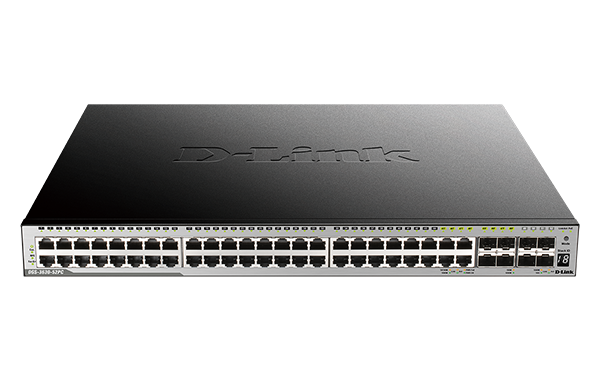

D-link DGS-3630-52PC 52-Port Layer 3 Stackable Managed Gigabit PoE Switch

Sku: DGS-3630-52PC

Brand: D-LINK

Category: Switches

$10,721.70 $12,980.00 17% OFF

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Routing Table Size: 16000, Stacking: Physical and Virtual, Stacking Capacity: Physical (9), Virtual (32), Number of Ports: 48 - 52, PoE Type Required: PoE|PoE+, Stacking Bandwidth: 80 Gbps, Fans: 4, Jumbo Frame: 12K bytes, SFP ports: 4 Ports (Combo), Lifetime Limited Warranty, DGS-3630-52PC.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # D-Link | Model # DGS-3630-52PC



The DGS-3630-28PC and DGS-3630-52PC switches support the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, which provide up to 30 W of power per port to power devices such as IP phones, Access Points, or security cameras.



Both models feature a 370W PoE power budget which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allowing the switches to power even more devices.



Features:

  • Gigabit Layer 3 Stackable Switch
  • Four 10 Gigabit uplink ports
  • 48 PoE+ ports with up to 740 Watts PoE budget
  • 6kV surge protection on all RJ-45 ports
  • Stackable up to 9 units, 432 GbE ports
  • Supports long-distance stacking over fibre
  • 80 Gbps per device stacking bandwidth
  • Easy-to-use web GUI
  • Industry standard CLI



Overview:

  • Routing Table Size: 16000
  • Stacking: Physical and Virtual
  • Stacking Capacity: Physical (9), Virtual (32)
  • Number of Ports: 48 - 52
  • PoE Type Required: PoE|PoE+
  • Stacking Bandwidth: 80 Gbps
  • Fans: 4
  • Jumbo Frame: 12K bytes
  • SFP ports: 4 Ports (Combo)



Manufacturer Warranty: Lifetime Limited Warranty

802.1X Access Control Yes
Guest VLAN Yes
IP Interfaces Yes
Layer 3 Switching Yes
Redundant PSU DPS-700
Routing Table Size 16000
Stacking Physical and Virtual
Stacking Capacity Physical (9), Virtual (32)
Number of Ports 48 - 52
PoE Type Required PoE|PoE+
Type of Port Required Gigabit Copper|Gigabit Fibre|10 Gigabit Fibre
Redundant Power Supply Option Yes
Stacking Bandwidth 80 Gbps
Switch Type Layer 3+ IP Routing
Switch Series DGS-3630 Series
10 Gig ports Yes
Layer Layer 3
SFP+ ports 4
Cable Diagnostics Yes
Command Line Interface Yes
DHCP Server Screening Yes
Dimensions (Size) 441 x 259.8 x 44 mm
Energy Saving Technology EEE Compliant|D-Link Green
Fans 4
IGMP Snooping Yes
Jumbo Frame 12K bytes
Link Aggregation Yes
PoE Budget 370 Watts (740 w RPS)
PoE ports 48 Ports
QoS Yes
19" Rack Mountable Yes
SFP ports 4 Ports (Combo)
SNMP Yes
Spanning Tree Protocol Yes
Switching Capacity 176 Gbps
1000Base-T ports 48 Ports
VLAN 4K Groups
Voice VLAN Yes
Web-based GUI Yes
