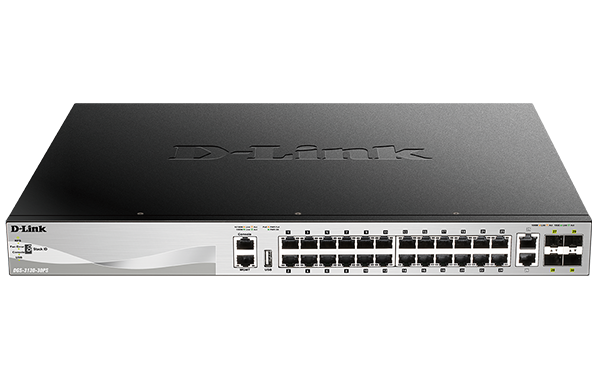

D-link DGS-3130-30PS 30 port Stackable Gigabit PoE Layer 3+ Switch with 6 10GbE ports

Sku: DGS-3130-30PS

Availability: Out of Stock

Brand: D-LINK

Category: Switches

$2,484.90 $3,023.90 18% OFF

Number of Ports: 24 - 32, Stacking Bandwidth: 80 Gbps, 10GBase-T ports: 2, SFP+ ports: 4, Jumbo Frame: 9K, PoE ports: 24 Ports, Lifetime Limited Warranty, DGS-3130-30PS.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # D-Link | Model # DGS-3130-30PS



The DGS-3130-30PS model features Power over Ethernet, which compatible devices to be powered by the switch through a standard Ethernet cable. It supports the IEEEE 802.3at PoE and IEEE 802.3at PoE+ standards, providing up to 30W of power per port. PoE effectively reduces deployment time for PoE devices such as IP cameras, VoIP phones, and access points, and eliminates the cost for additional electrical cabling. The 370W PoE power budget, which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allow the switches to power even more devices. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages the power feed to IEEE 802.3at PoE+ powered devices for optimal power distribution.



Features:

  • 24 1000Base-T PoE ports with 2 10GBASE-T and 4 10G SFP+ ports
  • 24 PoE/PoE+ ports with 370W budget, upgradable to 740W
  • Six 10Gb ports: 2 copper and 4 SFP+ for stacking and uplinks
  • 168 Gbps switching capacity
  • Stackable up to 9 switches with 80Gb stacking bandwidth
  • Layer 3 switch with essential Layer 3 features included
  • 6 kV surge protection on all copper ports
  • Comprehensive security features
  • Redundant Power Supply support



Overview:

  • Number of Ports: 24 - 32
  • Stacking Bandwidth: 80 Gbps
  • 10GBase-T ports: 2
  • SFP+ ports: 4
  • Jumbo Frame: 9K
  • PoE ports: 24 Ports



Manufacturer Warranty: Lifetime Limited Warranty

802.1X Access Control Yes
Guest VLAN Yes
IP Interfaces Yes
Layer 3 Switching Yes
Redundant PSU DPS-700
Routing Table Size 512
Stacking Physical and Virtual
Stacking Capacity Physical (9), Virtual (32)
Number of Ports 24 - 32
PoE Type Required PoE|PoE+|Extended PoE Budget
Type of Port Required Gigabit Copper|Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre
Redundant Power Supply Option Yes
Stacking Bandwidth 80 Gbps
Switch Type Layer 3 Lite
Switch Series DGS-3130 Series
10 Gig ports Yes
10GBase-T ports 2
Layer Layer 3
SFP+ ports 4
Cable Diagnostics Yes
Command Line Interface Yes
DHCP Server Screening Yes
Dimensions (Size) 440 x 350 x 44 mm
Energy Saving Technology EEE Compliant|D-Link Green
Fans 3
IGMP Snooping Yes
Jumbo Frame 9K
Link Aggregation Yes
PoE Budget 370 Watts (740 w RPS)
PoE ports 24 Ports
QoS Yes
19" Rack Mountable Yes
SNMP Yes
Spanning Tree Protocol Yes
Switching Capacity 168 Gbps
1000Base-T ports 24 Ports
VLAN 4K Groups
Voice VLAN Yes
Web-based GUI Yes
