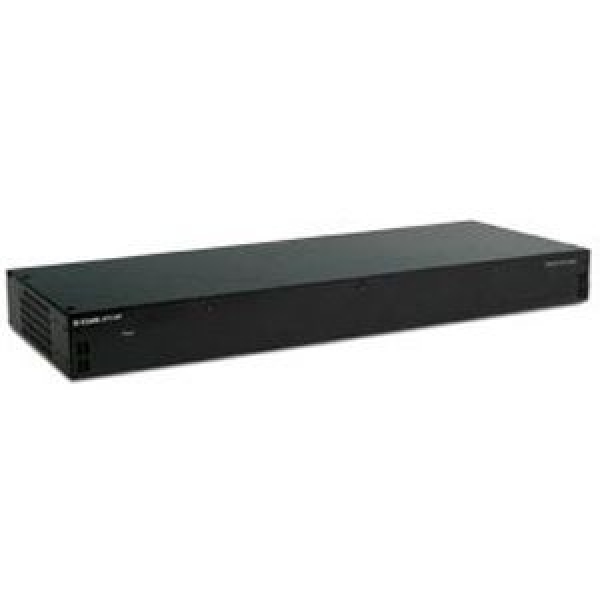

D-LINK 500w Redundant Power Supply Unit DPS-600

Description

Manufacture # D-LINK | Model # DPS-600

DPS-600 redundant power supply (RPS) is designed to conform to the wattage requirements of D-Link’s Ethernet and Gigabit switches. This is external RPS enclosed in solid metal cases with sockets to AC or DC power sources on one end, and connectors to the switch’s internal power supply on the other end. DPS-600 provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of the Ethernet switch, which can result in the shutdown of that switching device, the devices attached to its ports, or an entire network. Supporting full output power for the switch, this redundant power supply can maximize the power availability of the switching device.

Features:

• DPS-600 is equipped with an integrated detection circuit that continuously monitors the switching device’s internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service. This results in a more reliable network infrastructure and protects the network from a single failure of a network device power supply.
• Deployment of a DPS-600 does not necessitate any change in configuration of the LAN switch. DPS-600 is equipped with a universal internal power supply, and can be connected to any AC main power source from 85VAC to 264VAC, 47Hz to 63Hz through a standard AC power cable.
• DPS-600 is 19-inch standard-size rack mount power supply designed to improve flexibility in supporting PoE (Power over Ethernet) equipment.

Overview:

• Input Voltage Range: 90~264Vac
• Input Frequency: 47~63Hz
• MAX Input Current: 10A@115Vac
• 5A@230Vac
• Efficiency: 80%
• MTBF: 598,664 hours

Manufacturer Warranty: 01 Years Limited Warranty
