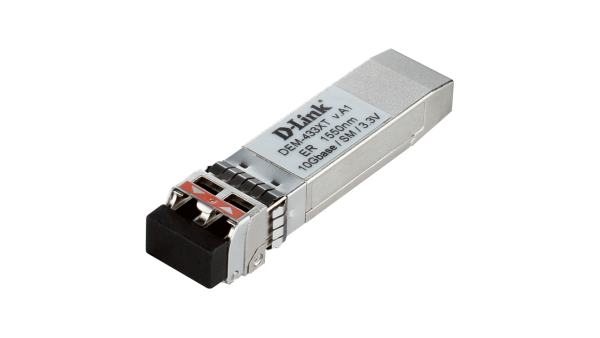

D-link 433XT 10GBase-ER SFP+ 40km Transceiver

Sku: DEM-433XT

Availability: Out of Stock

Brand: D-LINK

Category: Network Accessories

$1,160.50 $1,428.90 19% OFF

Transceiver Type: SFP+, Fiber Media support: Single-Mode, Distance: 40KM, Speed: 10Gbps, connector: Duplex LC Connector, Wavelength: 1550nm, 01 Year Limited Warranty, DEM-433XT.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # D-link | Model # DEM-433XT



D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.



Features:

  • Enhanced Small Form-Pluggable (SFP+) form factor
  • Hot pluggable
  • Support 10G Ethernet
  • Feature Digital Diagnostics Monitoring (DDM)
  • RoHS Compliant
  • Compliant with MSA (Multiple Source Agreement)
  • Compliant with IEEE802.3ae and 802.3aq standards



Overview:

  • Transceiver Type: SFP+
  • Fiber Media support: Single-Mode
  • Distance: 40KM
  • Speed: 10Gbps
  • connector: Duplex LC Connector
  • Wavelength: 1550nm



Manufacturer Warranty: 01 Year Limited Warranty

Hot Pluggable Yes
MSA Compliant Yes
RoHS Compliant Yes
Compliant Standard IEEE-802.3ae 10GBASE-ER
Transceiver Type SFP+
Fiber Channel FC-PI standard NA. [No standard definition]
Fiber Media support Single-Mode
Distance 40KM
Speed 10Gbps
connector Duplex LC Connector
single/bi Direction single-direction
Wavelength 1550nm
Output Optical Power (TX Optical Power) MAX.: +3 dBm
Interface MIN:-14.1 dBm
Input Optical Power (RX Optical Power) MAX.: -1.0 dBm
Sensitivity -14.1 dBm
Cable Type single-mode 9/125um fiber
Power 3.3V
Max Input Current 3.3V: 500mA
Power Budget (MIN Power Budget) 11.1dB
MAX Power Budget 17.1dB
Heat Generated 5.94KJ/H
MTBF (hours) 1580000
Operation Temperature 0°C 70°C
Storage Temperature -40°C 85°C
Humidity (Operating) 5% ~ 85%
Humidity (Storage) 5% ~ 95%
Dimension ( W x D x H ) Comply with SFF8432 14.8 x 56.5 x 11.85 mm
Weight 20g
