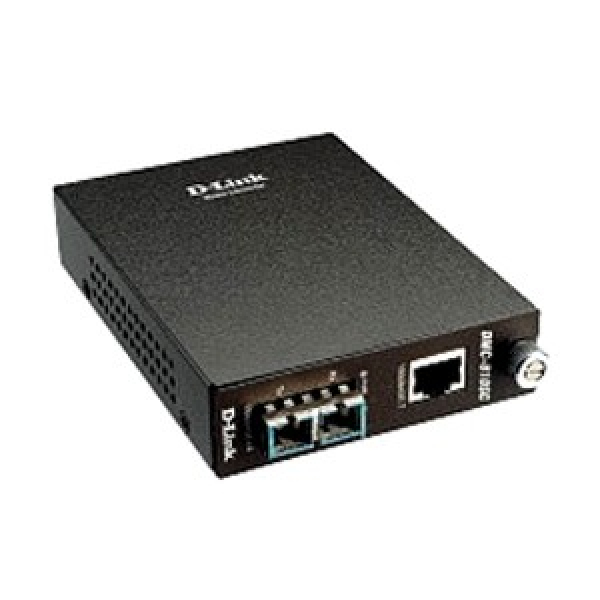

Manufacture # D-Link | Model # DMC-810SC
This Media Converter can be used by itself or installed in a chassis and converts between 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals.
The DMC-810SC converts 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals. Maximum fibre cable distance is 200 km. 1 RJ-45 port and 1 fibre port (SC type connector) are provided.
Features:
- The DMC-700SC can be used as stand-alone device or as a module installed in the DMC-1000 chassis.
- The media converter is housed in a solid metal case and comes with status LEDs and an external AC power adapter.
- If you install it in the DMC-1000 chassis, remove its metal case and slide its PC board into an open slot in chassis.
- In this application, the chassis provides power for all media converters inside it, and the media converter’s own external AC power adapter will not be necessary.
Overview:
- Dimensions: 120 x 88 x 25 mm
- Operating Temperature: 0° - 40° C
- Storage Temperature: -25° - 70° C
- Humidity: 10 ~ 90% non-condensing
Manufacturer Warranty: 01 Year Limited Warranty
