Manufacture # D-link | Model # DGS-1100-05PDV2

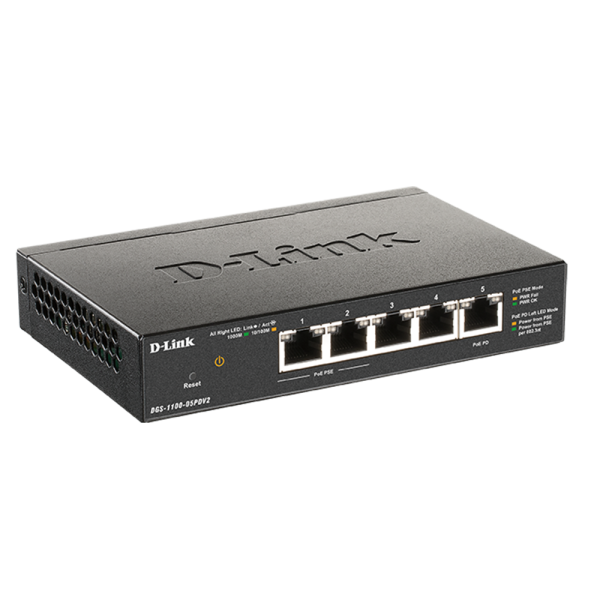

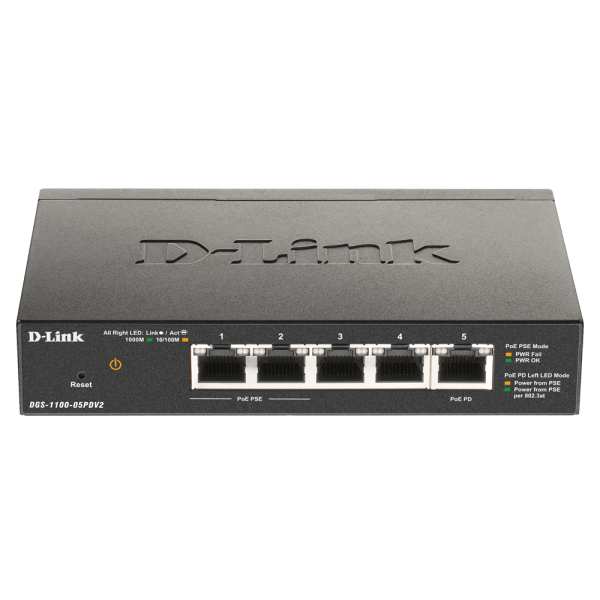

The DGS-1100-05PDV2 is a unique 5-port switch powered through the network cable by an upstream PoE power source (PoE switch or injector). As a “PoE extender”, it also has the ability to propagate (pass-through) PoE power further downstream to one or two Powered Devices (PDs). It comes in a compact desktop-sized metal case with fanless design for silent operation. Advanced management features, diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to suit your networking requirements.
Features:
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Switch Type | Layer 2 |
| Type of Port Required | Gigabit Copper |
| Number of Ports | 45062 |
| PoE Type Required | PoE|PoE+ |
| High Speed Stacking | No |
| Design | Desktop|Fanless |
| 1000Base-T ports | 5 Ports |
| PoE ports | 2 PoE Pass-through Ports |
| PoE Budget | 18 Watts (when powered with 802.3at) |
| Switching Capacity | 10 Gbps |
| QoS | Yes |
| Spanning Tree Protocol | Yes |
| Link Aggregation | Yes |
| VLAN | 32 Groups |
| Surveillance VLAN | Yes |
| Jumbo Frame | 9216 bytes |
| Voice VLAN | Yes |
| IGMP Snooping | Yes |
| Cable Diagnostics | Yes |
| Energy Saving Technology | EEE Compliant|D-Link Green |
| 19" Rack Mountable | No |
| Fans | Fanless |
| Dimensions (Size) | 150 x 97 x 28 mm |
| Web-based GUI | Yes |
| Command Line Interface | No |
| Types of ports | Gigabit Ports |
| Switch Series | DGS-1100 Series |
