Sku: CC-9011312-WW
Brand: Corsair
Category: Case Accessories
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
The CORSAIR FRAME 4000D RS is a fully modular mid-tower PC case engineered for extreme airflow, advanced customization, and support for reverse connector motherboards. With InfiniRail™ fan mounting, dual 360mm radiator support, and three high-performance RS120 fans included, it's built for powerful and clean next-gen builds.
We Accept
Manufacture: Corsair | Model: CC-9011312-WW
The CORSAIR FRAME 4000D RS Modular Mid-Tower PC Case revolutionizes the way you build PCs with its FRAME Modular Case System, offering unmatched customization and upgrade flexibility. Engineered with InfiniRail™ Fan Mounting, the FRAME 4000D RS allows sliding fan rails for precise airflow placement, supporting fans up to 200mm in the front and 140mm on the roof.
Crafted to support the latest reverse connector motherboards, this case promotes a zero-visible cable aesthetic and efficient airflow. It includes three RS120 PWM fans with magnetic dome bearings, daisy-chain support, and low-noise operation. The steel 3D Y-pattern front panel enhances airflow by up to 12%, making it ideal for high-performance builds.
With support for up to 12x 120mm fans and triple 360mm radiator compatibility, plus a built-in GPU anti-sag arm, cable shroud, and a modern front I/O layout (including USB-C), the FRAME 4000D RS is designed to evolve with your system—whether you're upgrading today or years down the line.
Modular FRAME System – Fully upgradable and customizable case components.

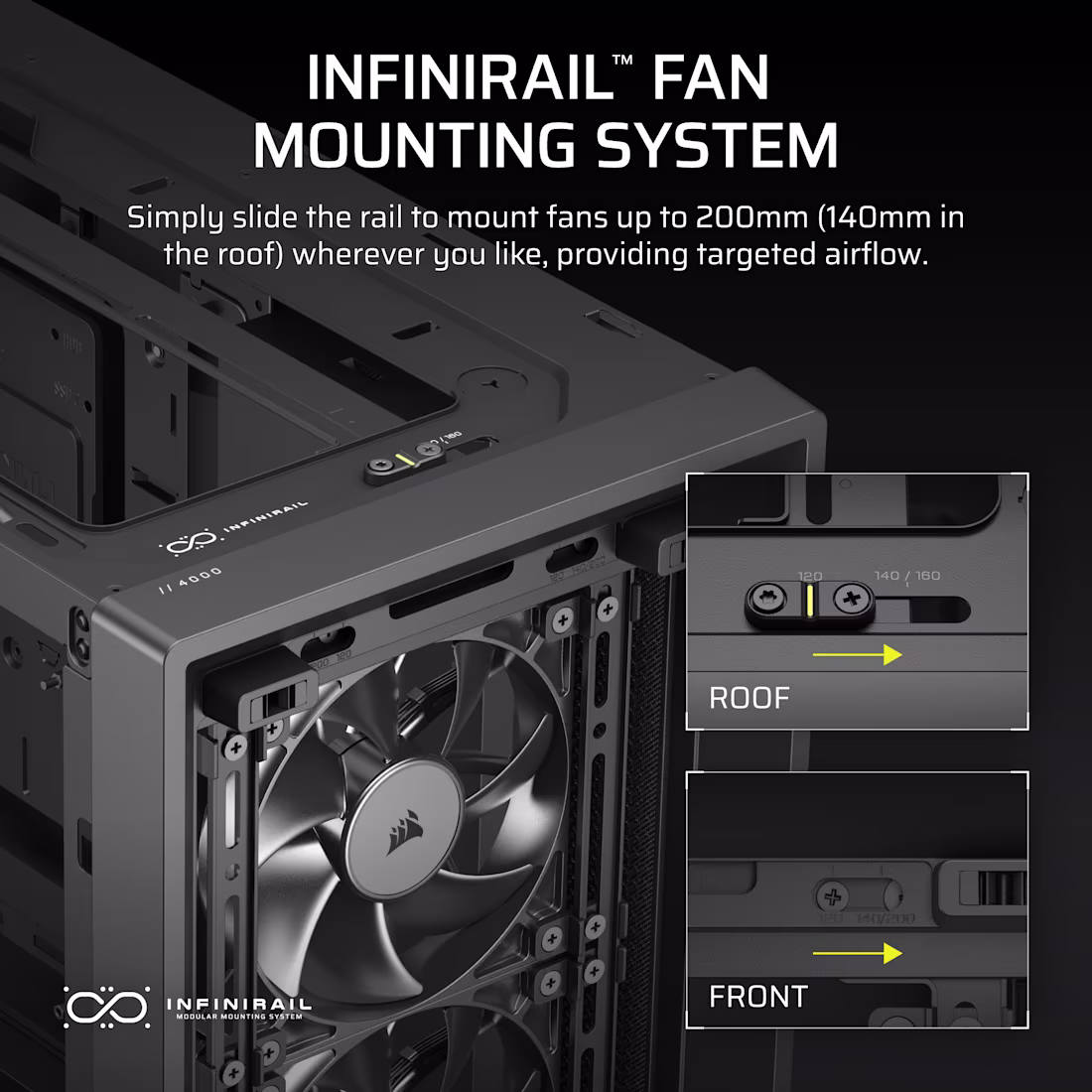

InfiniRail™ Fan Mounting System – Slide rails for optimal airflow placement (up to 200mm front fans).

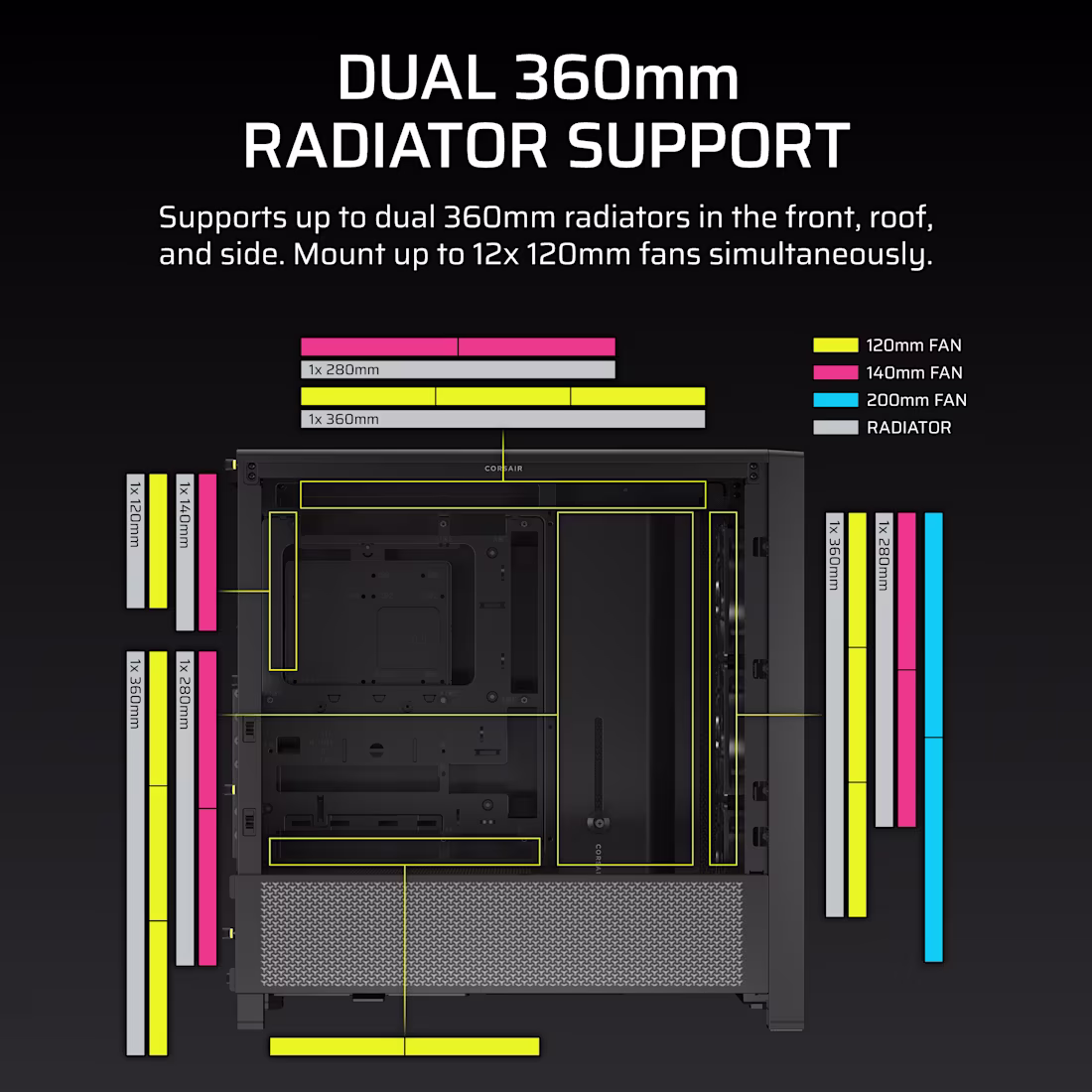

Dual 360mm Radiator Support – Front, top, and side mounts for extreme cooling setups.
Three RS120 Fans Included – High-performance, low-noise, PWM-enabled fans with magnetic bearings.
Reverse Connector Motherboard Ready – Cleaner builds with no visible cables.
GPU Anti-Sag Arm – Keeps your graphics card secure and level.
Modern Front I/O – USB-C, USB-A, combo audio jack, and intuitive power button.
Dust Filtration – Multiple filters for cleaner internals and easier maintenance.
Cable Management – 37mm space plus cable shroud for tidy routing.
2-Year Warranty – Backed by CORSAIR’s world-class support.
| Category | Details |
|---|---|
| Model | CORSAIR FRAME 4000D RS |
| Part Number | CC-9011312-WW |
| Form Factor | Mid-Tower |
| Color | Black |
| Material | Steel, Plastic, Tempered Glass, 3D-Y Steel Front Panel |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm) |
| Drive Bays | 2x 3.5", 4x 2.5" |
| Expansion Slots | 7 Horizontal / 3 Vertical (Riser card not included) |
| Max GPU Length | 430mm |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 220mm |
| Cooling (Fan Support) | Up to 12x 120mm or equivalent in 140mm/200mm |
| Included Fans | 3x RS120 PWM Fans |
| Radiator Support | Front, Top, Side: 360mm / Rear: 120mm or 140mm |
| Dust Filters | Yes |
| Cable Routing Space | 37mm |
| Front I/O Ports | 1x USB-C (Gen 2), 2x USB-A (Gen 1), Combo Audio Jack |
| Reverse Connector MB Support | Yes |
| Dimensions (L x W x H) | 490 x 239 x 486 mm |
| Weight | 10.38 kg |
| Warranty | 2 Years |
| Compatible Coolers | Corsair H60, H100, H115, H150, Nautilus, Titan |
