Compact and efficient 850W SFX power supply featuring ATX 3.0 & SFX 12V Ver. 3.42 support, 80 PLUS Gold efficiency, fully modular cables, and advanced protections (OPP, OVP, OTP, OCP, SCP, UVP). Designed with a 92mm FDB fan for optimal cooling and quiet performance.
We Accept
Manufacture: Cooler Master | Model: MPY-8501-SFHAGV-3EWA

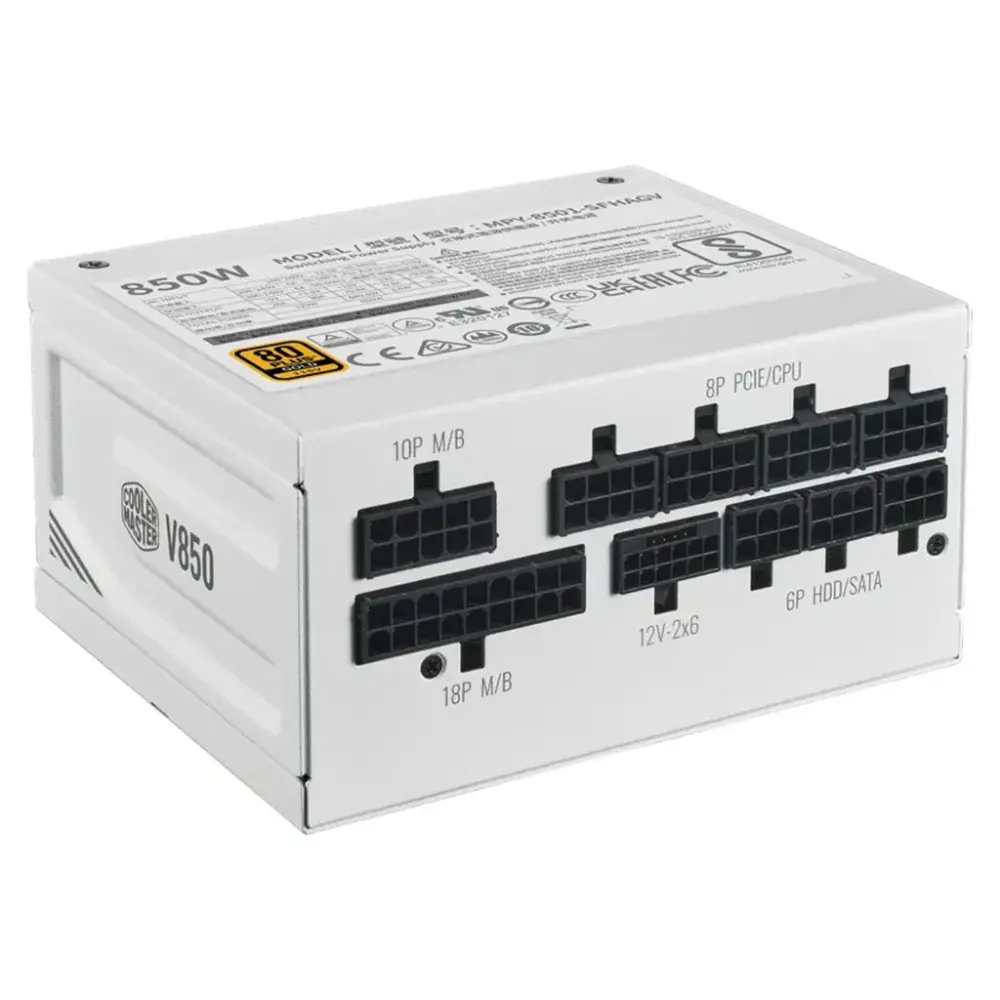

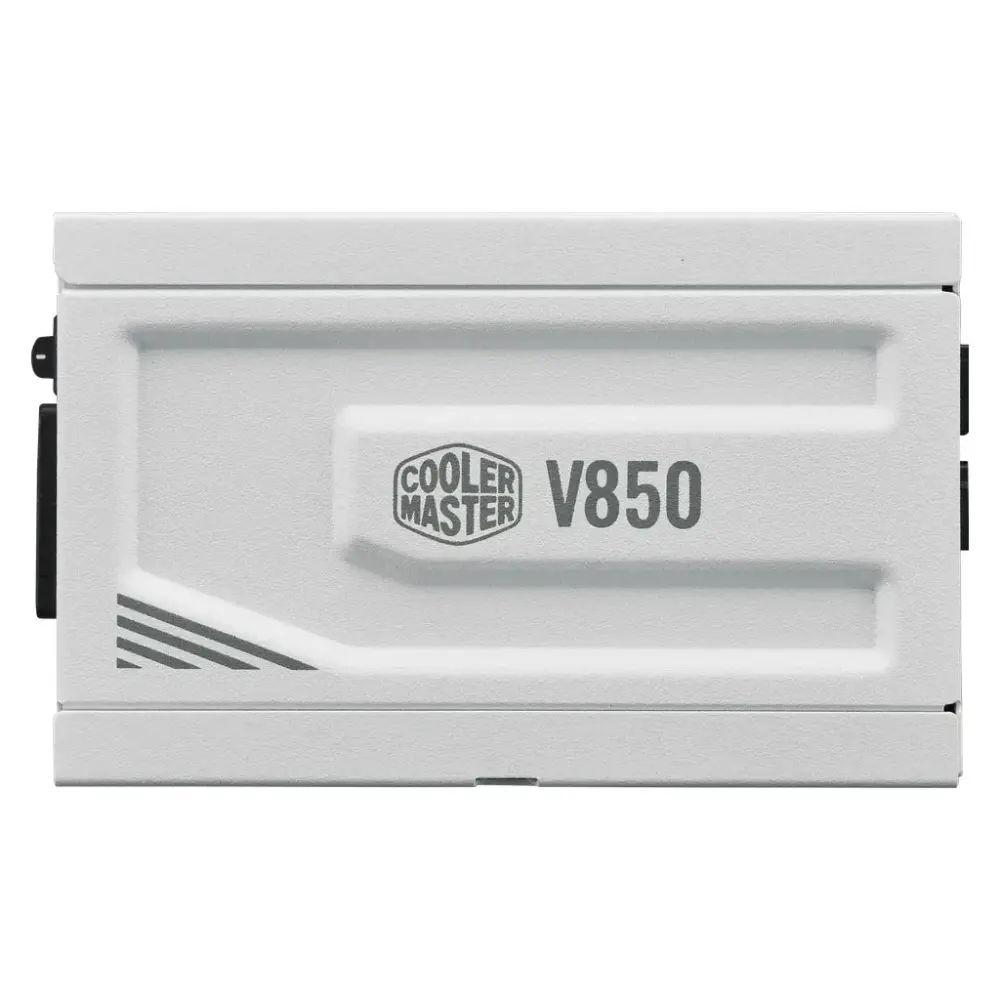

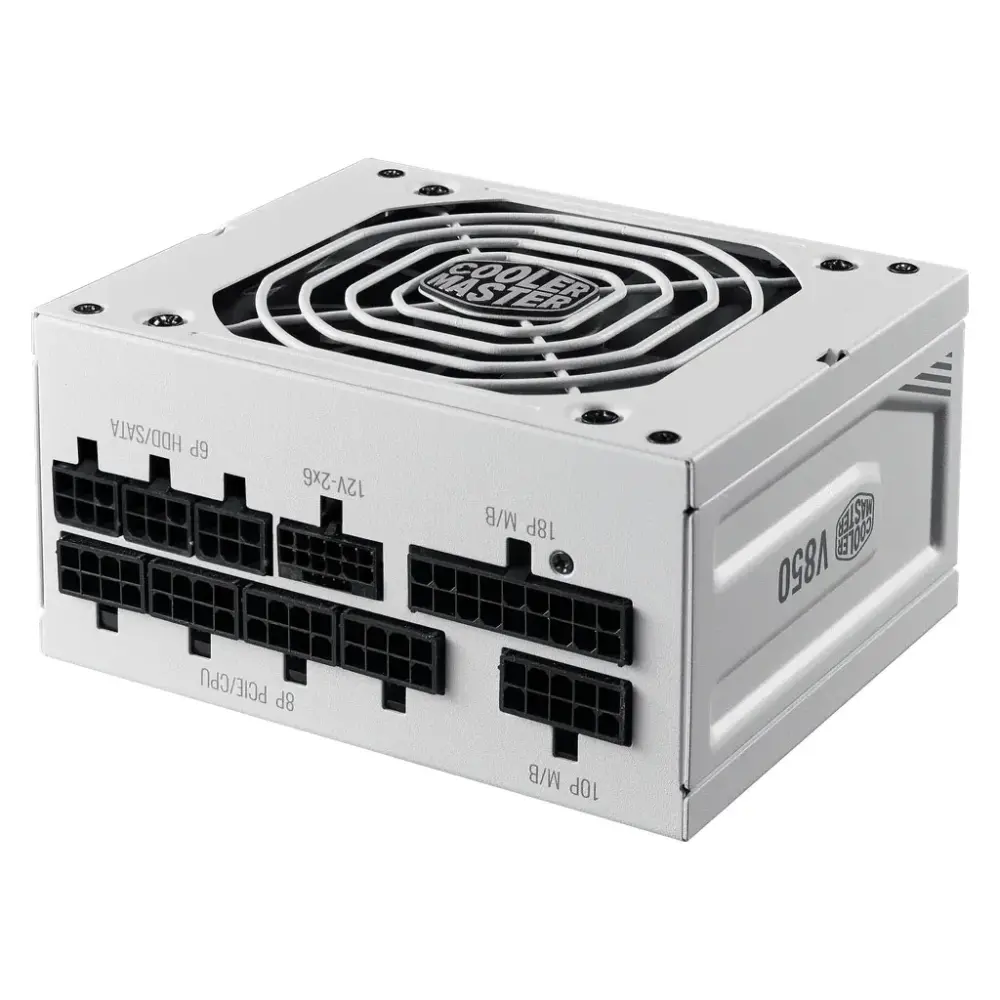

The Cooler Master V SFX 850W power supply is a high-efficiency, fully modular unit designed for compact builds. With an 80 PLUS Gold rating, it delivers 90% efficiency at typical loads, ensuring stable and reliable performance. Featuring Active PFC, a durable 92mm FDB fan, and multiple safety protections, this PSU offers enhanced power stability and cooling. It supports both ATX 3.0 and SFX 12V Ver. 3.42 standards, making it ideal for modern gaming and workstation setups. Its compact design and modular cables provide improved airflow and cable management in small form factor cases.
| ATX Version | ATX 3.0 |
| SFX Version | SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 12-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12VHPWR Connector | 1 |
| Series | V SFX Series |
| 80 Plus Efficiency | Gold |
| Modular | Fully Modular |
| Category | Above 750W |
| Form Factor | SFX |
| Watts | 850W |
| ETA Rating | Gold |
| LAMBDA Rating | Standard+ |
