Cooler Master MasterBox TD500 Mesh ARGB V2 Mid-Tower Case White

SKU : TD500V2-WGNN-S00
Brand : Cooler Master
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Materials - Exterior: Steel, Mesh, Plastic, Expansion Slots: 7, 3.5" Drive Bays: 2, 2.5" Drive Bays: 3, Fan Support - Rear: 1x 120mm, Warranty: 02 Years, TD500V2-WGNN-S00.
Ask a question about this product

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # TD500V2-WGNN-S00

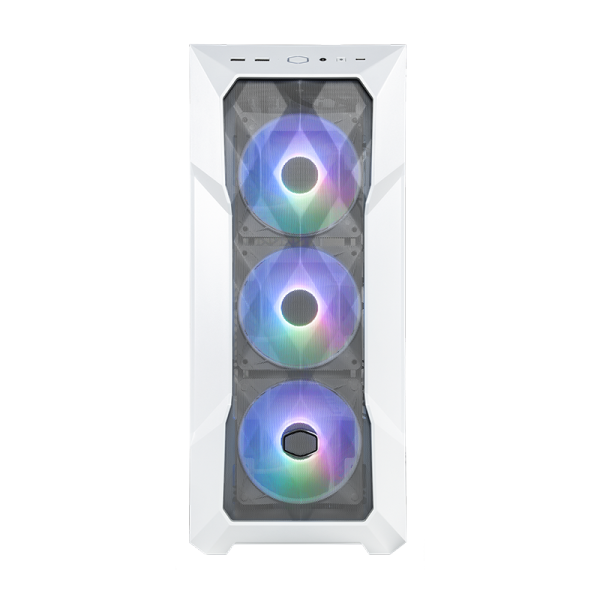

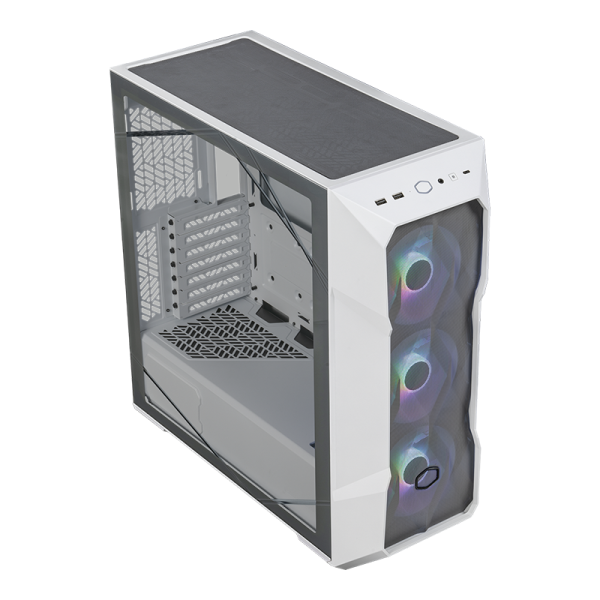

Cooler Master MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.



  • MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!
  • USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
  • The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
  • MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.



  • Materials Exterior: Steel, Mesh, Plastic
  • Expansion Slots: 7
  • 3.5" Drive Bays: 2
  • 2.5" Drive Bays: 3
  • Fan Support - Rear: 1x 120mm


Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Exterior Colour White
Materials - Exterior Steel, Mesh, Plastic

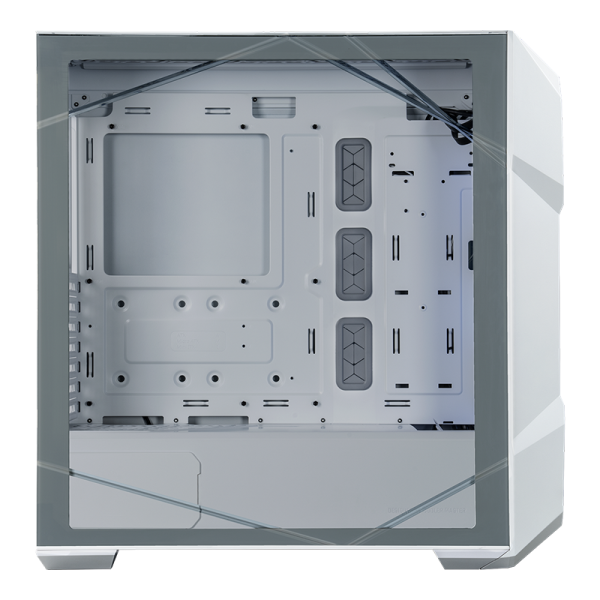

Materials - Left Side Panel Tempered Glass
Dimensions (L x W x H) 499 x 210 x 500mm (incl. Protrusions)
430 x 210 x 477mm (excl. Protrusions)
Volume 50L (excl. Protrusions)
Motherboard Support Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)
Expansion Slots 7
3.5" Drive Bays 2
2.5" Drive Bays 3
I/O Panel - USB Ports 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
I/O Panel - Audio In / Out 1x Audio Jack
I/O Panel - Other 1x ARGB Fan Hub
Pre-installed Fans - Front 3x 120mm CF120 ARGB
Fan Support - Top 3x 120mm, 2x 140mm
Fan Support - Front 3x 120mm, 2x 140mm
Fan Support - Rear 1x 120mm
Radiator Support - Top 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support - Front 120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support - Rear 120mm
Clearance - CPU Cooler 165mm
Clearance - PSU 200mm, (Recommended up to 170mm)
Clearance - GFX 410mm
Cable Routing - Behind Motherboard Tray 19mm
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
Series MasterBox Series
Size Mid Tower
