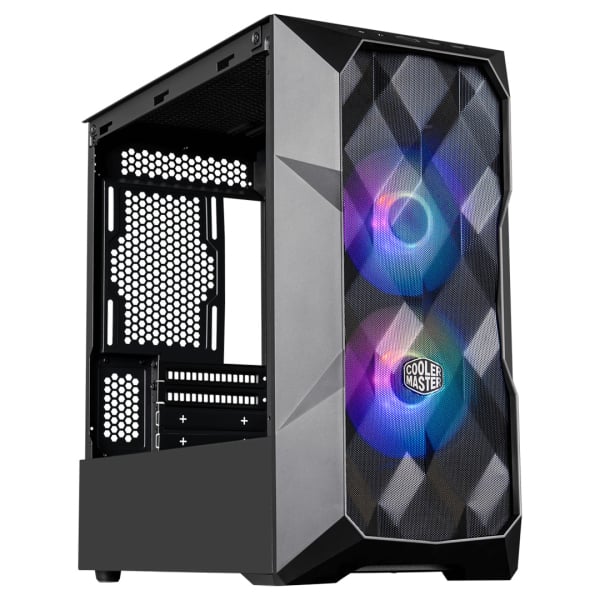

Cooler Master MasterBox TD300 ARGB Mesh Micro-ATX Case Black

SKU : TD300-KGNN-S00
Brand : Cooler Master
Availablity : Online Only, In Stock
Ships within 1 and 3 days or pick up from our Seven Hills, NSW warehouse within 1 to 3 days
Exterior Color: Black, Materials Body: Steel, Mesh, Plastic, Materials Side Panel: Tempered Glass, Motherboard Support: Mini ITX, Micro ATX, Expansion Slots: 4, 01 Year Limited Warranty, TD300-KGNN-S00.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cooler Master | Model # TD300-KGNN-S00


The included HUB features 5 ARGB and 4 PWM ports and facilitates cable management in the system, allowing you to conveniently control fans with a single connector for power and PWM signal and another for ARGB signal.



  • The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

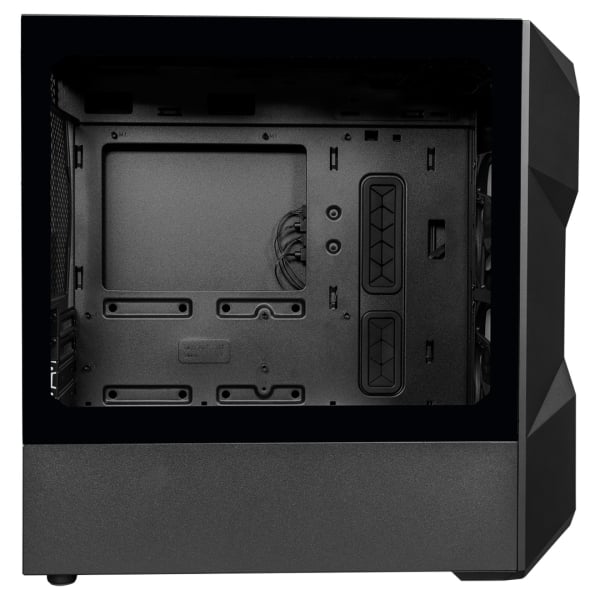

  • Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
  • Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
  • Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
  • The drive cage can be shifted towards the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.


  • Exterior Color: Black
  • Materials Body: Steel, Mesh, Plastic
  • Materials Side Panel: Tempered Glass
  • Motherboard Support: Mini ITX, Micro ATX
  • Expansion Slots: 4


Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Exterior Color Black
Materials Body Steel, Mesh, Plastic
Materials Side Panel Tempered Glass
Dimensions (L x W x H) 366.5 x 210 x 410mm (Body Size), 433 x 210 x 420.5mm (incl. Protrusions)
Volume 38.24L (incl. Protrusions)
Motherboard Support Mini ITX, Micro ATX
Expansion Slots 4
5.25" Drive Bays N/A
2.5" / 3.5" Drive Bays (Combo) 2
2.5" Drive Bays 2

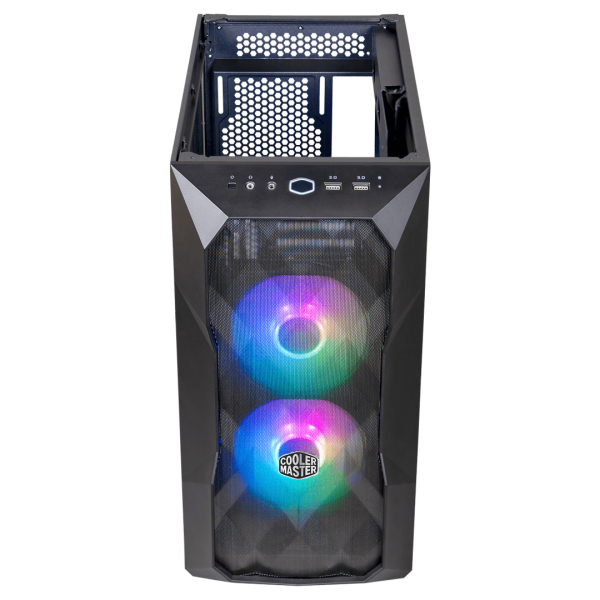

I/O Panel 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB/PWM Hub
Pre-installed Fans Top N/A

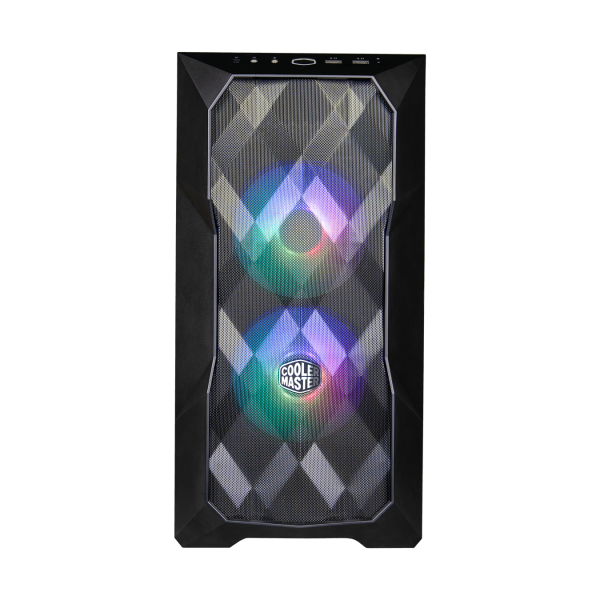

Pre-installed Fans Front 2x 120mm Sickle flow PWM ARGB Fans
Pre-installed Fans Rear N/A
Pre-installed Fans Bottom N/A
Fan Support Top 2x 120mm / 2x 140mm
Fan Support Front 3 x 120mm* / 2 x 140mm, *can only mount behind the front plate
Fan Support Rear 1x 120mm
Radiator Support Top 120mm, 140mm, 240mm, 280mm
Radiator Support Front 120mm, 140mm, 240mm, 280mm
Radiator Support Rear 120mm
Clearance CPU Cooler 166mm
Clearance PSU 325mm (w/o front radiator & drive cage), 140mm (drive cage in backmost position)
Clearance GFX 344mm
Cable Routing Behind Motherboard Tray 18-22mm
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
Series MasterBox Series
Size Mini Tower
