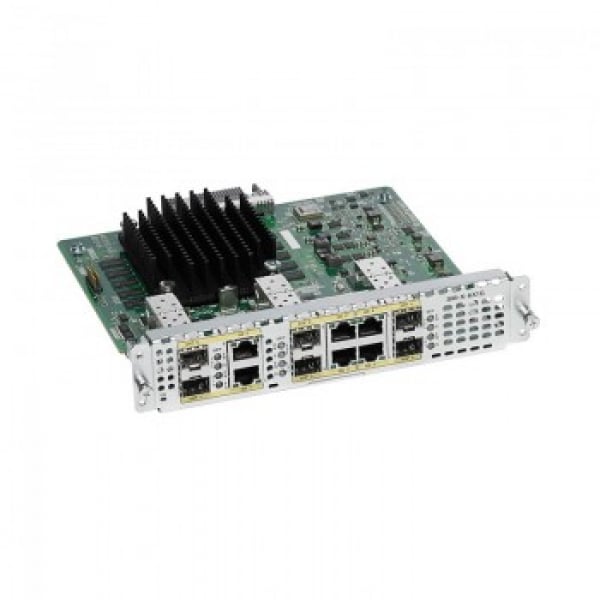

CISCO Sm-x Module With 6-port Dual-mode Ge / SM-X-6X1G

Description

Manufacture # Cisco | Model # SM-X-6X1G

The Cisco Gigabit Ethernet WAN Modules bring high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs).

Features:

• Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing
• Cisco SM-X-6X1G High-speed connectivity to LAN switches and servers
• The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on
• The module or between ports on the module and other ports within the router system is not supported
• The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system
• The host router routes all traffic entering these modules
• Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).


Overview:

• Product Type: Service Module
• Application/Usage: Data Networking, Optical Network
• Interfaces/Ports Details: 6 x RJ-45 10/100/1000Base-TX Network LAN
• Media Type Supported: Twisted Pair, Optical Fiber
• Ethernet Technology: Gigabit Ethernet

Manufacturer Warranty: 01 Year Limited Warranty
