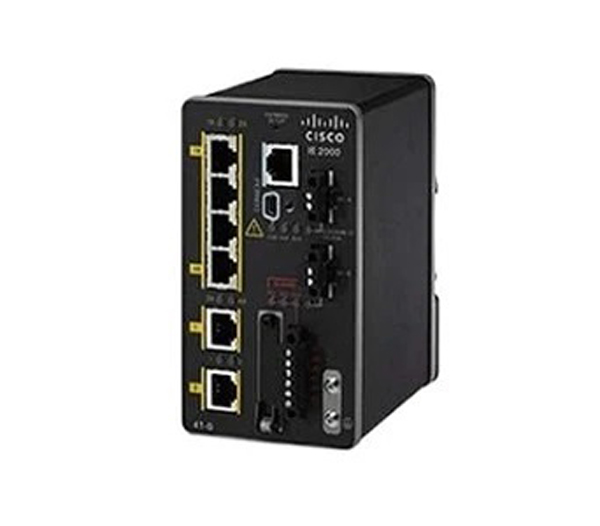

CISCO Ie 4 10/1002 Gig Port IE-2000-4T-G-B Managed

SKU : IE-2000-4T-G-B
Brand : Cisco
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Cisco IE-2000-4T-G-B Gigabit Ethernet, Switch - 6 ports - managed, Port 4 x 10/100 + 2 x 10/100/1000, Forwarding performance (64-byte packet size): 6.5 Mpps, Capacity Virtual interfaces (VLANs): 255, RAM 256 MB, Flash Memory 64 MB, Interface 4 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45, Expansion Slots 1 (total) / 1 (free) x SD Memory Card, MTBF 374,052 hours. The Cisco Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks.
Ask a question about this product
$1,913.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cisco | Model # IE-2000-4T-G-B



The Cisco Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol



Features:

  • Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
  • Dual-input DC power supply, alarm relays, DIN rail mount
  • Industrial Power over Ethernet (PoE) solution
  • Swappable SD flash card and mini-USB connector
  • Industrial environmental compliance and certifications
  • Industrial partner applications: Ethernet/IP and PROFINET



Overview:

  • Device Type: Switch - 6 ports - managed
  • Enclosure Type: DIN rail mountable
  • Subtype: Gigabit Ethernet
  • Capacity: Virtual interfaces (VLANs): 255
  • MAC Address Table Size: 8K entries
  • Routing Protocol: IGMP, static IPv4 routing



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Device Type Switch - 6 ports - managed
Enclosure Type DIN rail mountable
Subtype Gigabit Ethernet
Ports 4 x 10/100 + 2 x 10/100/1000
Performance Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity Virtual interfaces (VLANs): 255
MAC Address Table Size 8K entries
Routing Protocol IGMP, static IPv4 routing
Remote Management Protocol SNMP 3, HTTPS, SSH
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Port Security, Remote Switch Port Analyzer (RSPAN)
Compliant Standards IEEE 802.1x
RAM 256 MB
Flash Memory 64 MB
Interfaces 4 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Rack Mounting Kit Optional
MTBF 374,052 hours
Compliant Standards C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, VCCI Class A ITE, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, KCC, IEC 60068-2-27, IEC 60068-2-6, UL 508, FCC Part 15 A, IEC 60529 IP30, CISPR 11, CSA 22.2 No. 142, EN 61131-2, EN 61326-1, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-14
Software Included Cisco IOS LAN Base
Width 2.9 in
Depth 4.5 in
Height 5 in
Weight 2.45 lbs
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 185 °F
