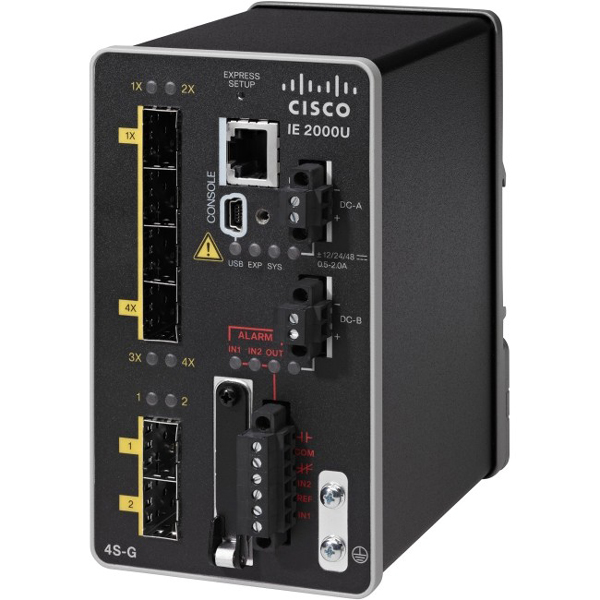

CISCO Ie 2000u 4 Sfp Fe 2 Sfp Ge IE-2000U-4S-G Managed

SKU : IE-2000U-4S-G
Brand : Cisco
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Cisco IE-2000U-4S-G, Switch - 6 ports - managed, Port 4 x 100 Mbit SFP + 2 x 1000Base-X SFP (uplink), RAM 256 MB, Flash Memory 128 MB, Interface 4 x 100Base-FX SFP downlink ¦ 2 x 1000Base-X SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B, Expansion Slots 1 (total) / 1 (free) x SD Memory Card. The Cisco Industrial Ethernet (IE) 2000U Switches are compact switches for the harsh, rugged environments often found in the energy and utility industries. IE 2000U switches support the communications needs of the utility.
Ask a question about this product
$2,048.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cisco | Model # IE-2000U-4S-G



The Cisco Industrial Ethernet (IE) 2000U Switches are compact switches for the harsh, rugged environments often found in the energy and utility industries. IE 2000U switches support the communications needs of the utility- and customer-owned energy-delivery infrastructure across distributed generation, transmission, and distribution sectors. Cisco IE2000U Switch - managed - 6 Port - 4 x Fast Ethernet SFP and 2 x Gigabit Ethernet SFP Ports - LAN Base Cisco IOS Software - DIN rail mountable (IE-2000U-4S-G).



Features:

  • Rugged industrial design and substation compliance (meets IEC 61850-3 and IEEE 1613 standards for utility substation environments)
  • Advanced capabilities to support mission-critical substation applications such as supervisory control and data acquisition (SCADA)
  • Support for Precision Timing Protocol (PTP) applications based on IEEE 1588 v2 standards
  • Hitless failover protocol support of Parallel Redundancy Protocol based on the IEC 62439-3 standard
  • Support for the Resilient Ethernet Protocol (REP) and Flex Links for fast reconvergence in ring and hub-and-spoke topologies



Overview:

  • Device Type: Switch - 6 ports - managed
  • Enclosure Type: DIN rail mountable
  • MAC Address Table Size: 8K entries
  • Encryption Algorithm: SSL
  • Power Consumption Operational: 15 Watt
  • Software Included: Cisco IOS LAN Base



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Device Type Switch - 6 ports - managed
Enclosure Type DIN rail mountable
Subtype Gigabit Ethernet
Ports 4 x 100 Mbit SFP + 2 x 1000Base-X SFP (uplink)
Performance Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000
MAC Address Table Size 8K entries
Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, IGMP, PIM-SM, PIM-DM, MLDv2, MLD
Remote Management Protocol SNMP 1, SNMP 2, RMON 2, RMON, SNMP 3, HTTP, TFTP, SSH, CLI, SCP
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features ARP support, VLAN support, Syslog support, PIM snooping, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Port Security, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), rugged, Strict Priority Queuing (SPQ), Class of Service (CoS), 802.1x authentication, FTP client, Storm Control, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP)
Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 1588v2
RAM 256 MB
Flash Memory 128 MB
Interfaces 4 x 100Base-FX SFP downlink ¦ 2 x 1000Base-X SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Power Consumption Operational 15 Watt
Compliant Standards CISPR 22 Class A, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, ICES-003 Class A, UL 508, FCC Part 15 A, CSA 22.2 No. 142, VCCI Class A, KN24, KN22 Class A, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, IEC 61850-3, IEC/UL/CSA/EN 60950-1, EN 55022 Class A, EN 60079-15:2010, IEEE 1613, CNS 13438 Class A, EN 300 386
Software Included Cisco IOS LAN Base
Width 3.1 in
Depth 4.5 in
Height 5.1 in
Weight 2.69 lbs
Min Operating Temperature -40 °F
Max Operating Temperature 158 °F
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -58 °F
Max Storage Temperature 185 °F
