CISCO Ie 2000u 16 X 10/100 2 Fe Sfp 2 T/sfp Ge IE-2000U-16TC-G-X Managed CISCO Ie 2000u 16 X 10/100 2 Fe Sfp 2 T/sfp Ge IE-2000U-16TC-G-X Managed

CISCO Ie 2000u 16 X 10/100 2 Fe Sfp 2 T/sfp Ge IE-2000U-16TC-G-X Managed

SKU : IE-2000U-16TC-G-X
Brand : Cisco
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Cisco IE-2000U-16TC-G-X Industrial Ethernet Switches, 256 megabyte, Forwarding performance (64-byte packet size): 6.5 Mpps, Fast Ethernet, Expansion Slots1 (total) / 1 (free) x SD Memory Card, Interface 2 x 1000Base-X SFP, 2 x SFP, 18 x 100Base-TX RJ-45, 2 x 1000Base-T RJ-45, 1 x mini-USB Type B, 1 x console RJ-45. The Cisco 2000U Industrial Ethernet Switches (IE 2000U) are a range of compact switches designed for the harsh, rugged environments often found in the energy and utility industries.
Ask a question about this product
$4,923.00
Buy Now

Estimated Shipping

Delivery when available

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cisco | Model # IE-2000U-16TC-G-X

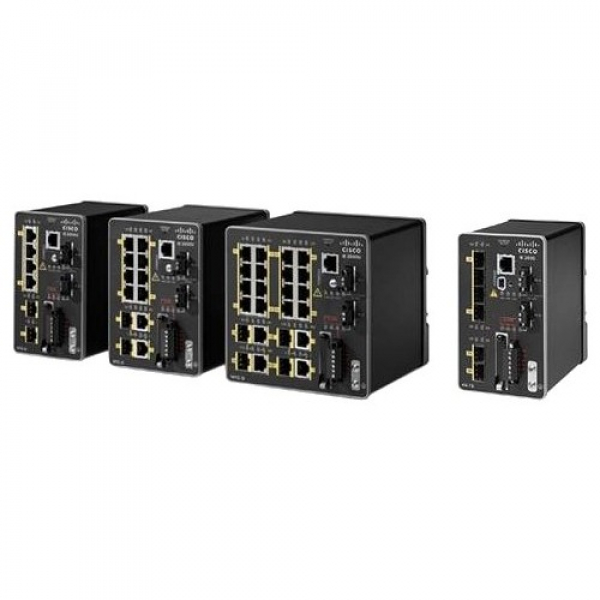

The Cisco 2000U Industrial Ethernet Switches (IE 2000U) are a range of compact switches designed for the harsh, rugged environments often found in the energy and utility industries. IE 2000U switches are designed to support the communications infrastructure needs for the energy delivery infrastructure across distributed generation, transmission, and distribution sectors.



This infrastructure includes utility and customer-owned energy infrastructure, such as substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, cogeneration, and trackside operations. The infrastructure also includes communications infrastructure for delivery applications such as transmission pipelines, distribution mains, and service lines for oil and gas and water.



Features:

  • Rugged industrial design and substation compliance (meets IEC 61850-3 and IEEE 1613 standards for utility substation environments)
  • Advanced capabilities to support mission-critical substation applications such as supervisory control and data acquisition (SCADA)
  • IEC 61850 Generic Object-Oriented Substation Events (GOOSE) messaging
  • Support for Precision Timing Protocol (PTP) applications based on IEEE 1588 v2 standards
  • Hitless failover protocol support of Parallel Redundancy Protocol based on the IEC 62439-3 standard



Overview:

  • Type: Switch
  • Form Factor: DIN rail mountable
  • MAC Address Table Size: 8K entries
  • Manageable: Yes
  • Expansion Slots: 1 (total) / 1 (free) x SD Memory Card
  • Type: Cisco IOS LAN Base
  • Encryption Algorithm: SSL



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Brand Cisco
Model 2000U Series
RAM Installed Size 256 megabyte
Flash Memory Installed Size 64 megabyte
Performance Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity Virtual interfaces (VLANs): 255, IGMP groups: 255
Type Switch
Subcategory Network hubs and switches
Subtype Fast Ethernet
Form Factor DIN rail mountable
Ports Qty 20
MAC Address Table Size 8K entries
Manageable Yes
Remote Management Protocol SNMP 2, RMON, HTTP, SNMP 3, SNMP 1, CLI, RMON 2, SSH
Features DHCP snooping, Time Domain Reflectometry (TDR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Full duplex capability, Strict Priority Queuing (SPQ), Port Security, Spanning Tree Protocol (STP) support, Syslog support, Uni-Directional Link Detection (UDLD), Conformal coated, Digital Optical Monitoring (DOM) support, Class of Service (CoS), Dynamic ARP Inspection (DAI), Access Control List (ACL) support, Rapid Spanning Tree Protocol (RSTP) support, Precision Time Protocol (PTP), FTP client, Port Aggregation Protocol (PAgP) support, VLAN support, MLD snooping, Rugged, Storm Control
Compliant Standards IEEE 802.3ah, IEEE 802.3, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.3u, IEEE 802.1ag, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.3x, IEEE 802.1p, IEEE 1588v2, IEEE 802.3ab, IEEE 802.1Q
Qty 16
Type 10/100
Qty 2
Type Combo Gigabit SFP
Qty 2
Type Combo SFP
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Interfaces 2 x 1000Base-X SFP, 2 x SFP, 18 x 100Base-TX RJ-45, 2 x 1000Base-T RJ-45, 1 x mini-USB Type B, 1 x console RJ-45
Type Cisco IOS LAN Base
Color Category Black
Encryption Algorithm SSL
Authentication Method TACACS+, RADIUS
Compliant Standards CB, KN22 Class A, UL 508, CISPR 24, FCC Part 15 A, IEC/UL/CSA/EN 60950-1, KN24, IEC 61000-4-4, CISPR 22 Class A, EN50204, IEC 61000-4-3, BSMI CNS 13438 Class A, EN 300386, EN55024, CSA 22.2 No. 142, VCCI Class A, IEC 61000-4-5, EN 55022 Class A, IEC 62439-3, IEC 61000-4-6, IEC 61000-4-2, ICES-003 Class A, IEC 61850-3, EN 300 386
Width 5.1 inch
Depth 5 inch
Height 5.3 inch
Weight 4.34 lbs
Min Operating Temperature -40 degree Fahrenheit
Max Operating Temperature 140 degree Fahrenheit
Min Storage Temperature -58 degree Fahrenheit
Max Storage Temperature 185 degree Fahrenheit
Humidity Range Operating 5 - 95% (non-condensing)
