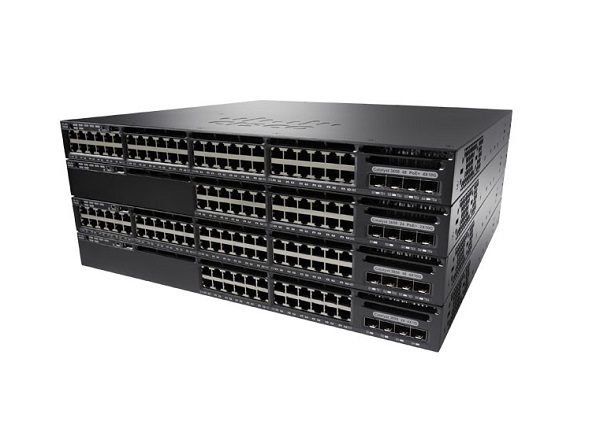

CISCO Catalyst 3650 48port Mini 4x10g Uplink Ip WS-C3650-48FQM-S

Brand : CISCO
SKU : WS-C3650-48FQM-S
Availablity : On Order
6 to 8 weeks Delivery Time Due To Covid 19

Free shipping free shipping

Up to 40G of wireless capacity per switch (48-port models) Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack) Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor   The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. ...
$16,214.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa
  • Description
  • Specifications

Product Description

Manufacture # Cisco | Model # WS-C3650-48FQM-S



The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC).



Features:

  • Up to 40G of wireless capacity per switch (48-port models)
  • Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)
  • Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
  • Dual redundant, modular power supplies and three modular fans providing redundancy
  • Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy
  • Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor



Overview:

  • Ports: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
  • RAM: 4 GB
  • Flash Memory: 2 GB
  • Power Device: Internal power supply
  • Power Redundancy: Optional
  • Power Provided: 975 Watt
  • Voltage Required: AC 120/230 V (50/60 Hz)



Manufacturer Warranty: 01 Year Limited Warranty



Technical Specifications

Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 775 W
Performance Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP-1, EIGRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, active, status, PoE
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 975 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Rack Mounting Kit Included
MTBF 383,760 hours
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software Included Cisco IOS IP Base
Width 17.5 in
Depth 19.1 in
Height 1.7 in
Weight 17.2 lbs
