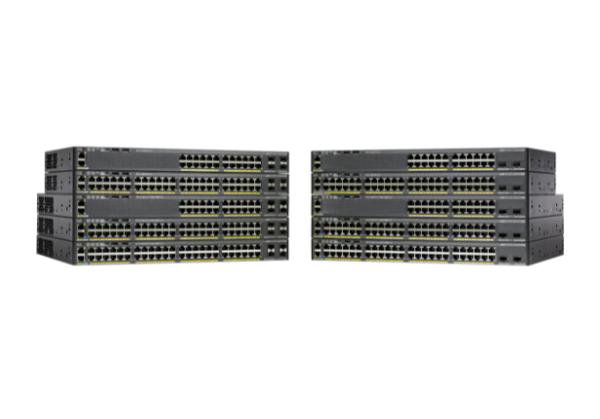

CISCO Catalyst 2960-xr 48 Gige Poe 740w 2 X 10g WS-C2960XR-48FPD-I Managed

SKU : WS-C2960XR-48FPD-I
Brand : Cisco
This product is either discontinued or we cannot get that from suppliers.
CISCO Catalyst WS-C2960XR-48FPD-I, Ethernet Switch, Network Ports-48, PoE (RJ-45) Ports-24, Port 48 x Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot, Twisted Pair, Gigabit Ethernet, 10 Gigabit Ethernet, Network 10/100/1000Base-T, SFP+, Standard Memory 512 MB, DRAM, Flash Memory128 MB, MTBF 231590 Hour, Input 110 V AC, 220 V AC, Rack-mountable. All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.
Ask a question about this product
Call Us

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cisco | Model # WS-C2960XR-48FPD-I



All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.



Features:

  • Cisco WS-C2960XR-48FPD-I LAN Lite models have reduced functionality and scalability
  • For small deployments with basic requirements
  • Cisco Catalyst 2960-X Family of Switches are available
  • With the LAN Base and LAN Lite feature sets
  • Catalyst 2960-XR Family of switches are available IP Lite feature sets.



Overview:

  • Product Type: Ethernet Switch
  • Total Number of Network Ports: 48
  • Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
  • Network Technology: 10/100/1000Base-T
  • Number of Total Expansion Slots: 2



Manufacturer Warranty: Lifetime Limited Warranty

Technical Specifications

Manufacturer Part Number WS-C2960XR-48FPD-I
Brand Name Cisco
Product Line Catalyst
Product Series 2960-XR
Product Model 2960XR-48FPD-I
Product Name Catalyst 2960XR-48FPD-I Ethernet Switch
Product Type Ethernet Switch
Total Number of Network Ports 48
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Number of PoE (RJ-45) Ports 24
Number of PoE+ (RJ-45) Ports 24
Port/Expansion Slot Details 48 x Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 5
Ethernet Technology Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology 10/100/1000Base-T
Number of Total Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Layer Supported 3
Manageable Yes
Standard Memory 512 MB
Memory Technology DRAM
Flash Memory 128 MB
MTBF 231590 Hour
PoE (RJ-45) Port Yes
Input Voltage 110 V AC, 220 V AC
Power Source Power Supply
Redundant Power Supply Supported Yes
Form Factor Rack-mountable
Height 1.8"
Width 17.5"
Depth 16"
Weight (Approximate) 14.60 lb
Environmentally Friendly Yes
Environmental Certification RoHS
Limited Warranty Lifetime
