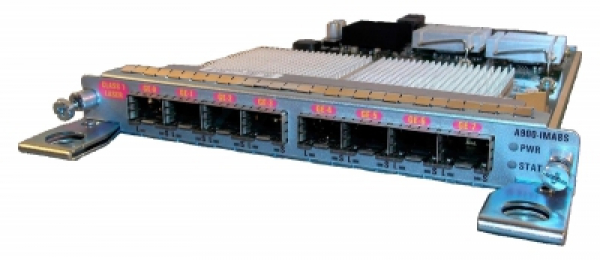

CISCO Asr 900 8 Port Sfp Gigabit Ethernet A900-IMA8S

SKU : A900-IMA8S
Brand : Cisco
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Cisco A900-IMA8S, Port 8-port Gigabit Ethernet SFP, MTBF 2,987,310 hours, Power draw17W maximum, Expansion Slots-8. The Cisco ASR 900 Ethernet interface modules are designed to give customers flexibility and value. All Ethernet interface modules share a common core that supports time-stamping on the module for Y.1731 operations, administration, and maintenance.
Ask a question about this product
$5,951.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Cisco | Model # A900-IMA8S



The Cisco ASR 900 Ethernet interface modules are designed to give customers flexibility and value. All Ethernet interface modules share a common core that supports time-stamping on the module for Y.1731 operations, administration, and maintenance (OAM) delay measurement functions, to achieve precise results for one-way and two-way delay measurement. The modules also provide time-stamping functions for the IEEE 1588-2008 protocol. These time stamps help ensure that the Cisco ASR 903 Router achieves outstanding results when deploying IEEE 1588-2008 protocols for frequency and phase synchronization. Not all customers will deploy IEEE 1588-2008 for synchronization, so the Ethernet interface modules also support input and output frequency synchronization using synchronous Ethernet (SyncE).



Features:

  • The Cisco A900-IMA8S Router has six interface module slots
  • There are two types of interface module slots
  • Four slots support all of the available interface modules
  • The remaining two slots support only the Gigabit Ethernet and TDM Interface modules
  • The 10 Gigabit Ethernet modules are not supported in these slots
  • One of these two slots is limited to a maximum of seven Gigabit Ethernet ports
  • With the Cisco A900-IMA8S Route Switch Processor (RSP1).


Overview:

  • Type: ASR 900 8 port SFP Gigabit Ethernet Interface Module
  • Port density: 8-port Gigabit Ethernet SFP
  • Power draw: 17W maximum



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Type

ASR 900 8 port SFP Gigabit Ethernet Interface Module

Port density

8-port Gigabit Ethernet SFP

Power draw

17W maximum

Module shipment weight

2.18 lbs

Module shipment package size (LxWxH)

15.44 x 9.44 x 4.31 inches

Environmental specifications

–40 to 65ºC (–40 to 149ºF) operating temperature (using Industrial temperature XFP, SFP, and SFP+ optics)

0 to 40ºC (32 to 104ºF) operating temperature (CPAK and QSFP optics)

Relative humidity

5 to 95%, noncondensing

Storage environment

Temperature: –40 to 70ºC (–40 to 158ºF) altitude: 4570 m (15,000 ft)

MTBF at 40ºC (104ºF) operating temperature

2,987,310 hours

Reliability and availability

OIR field-replaceable SFP optics modules

Support for both 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

Single interface module software reset

Rolling software upgrade, interface module by interface module
