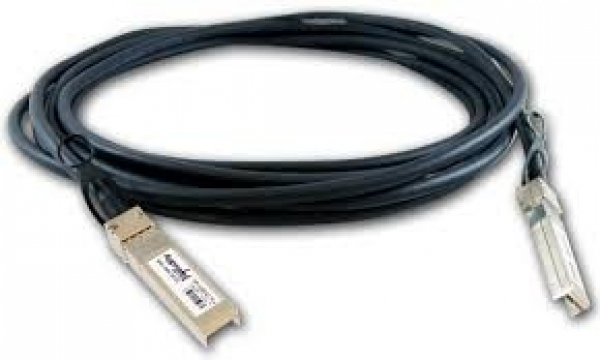

CISCO Active Twinax Cable Assembly SFP-H10GB-ACU7M

Description

Manufacture # Cisco | Model # SFP-H10GB-ACU7M

The SFP+ DAC copper cable is programmed to be compatible with a wide range of Cisco network equipment for in-rack connections such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems. It’s proven to be a cost-effective alternative to high-cost Cisco SFP-H10GB-ACU7M 10G SFP+ 7m direct attach the copper cable.

Features:

• Lower cost than SFP+ optical transceiver and active optical cable (AOC)
• Support for multi-gigabit data rates up to 10.5Gbps
• Support for 1x, 2x, 4x and 8x Fibre Channel data rates
• Hot-pluggable SFP 20PIN footprint
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
• Single 3.3V power supply
• Compatible to SFP+ MSA
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free

Overview:

• Wire Gauge 24AWG
• Cable Jacket Type PVC
• Data Rate 10.5Gb/s
• Connector SFP+/SFP+

Manufacturer Warranty: 01 Years Limited Warranty
