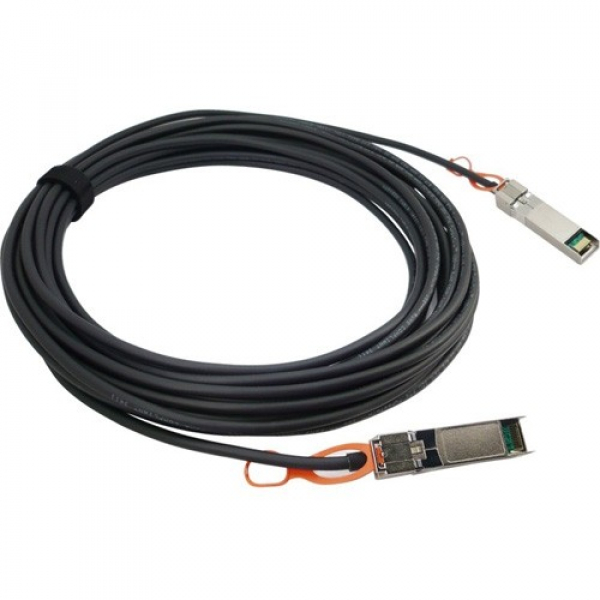

CISCO 10gbase-cu Sfp+ Cable 5 SFP-H10GB-CU5M

Name: CISCO 10gbase-cu Sfp+ Cable 5 SFP-H10GB-CU5M
Brand: Cisco
SKU: SFP-H10GB-CU5M
Price: 143 AUD
Availability: InStock

SKU : SFP-H10GB-CU5M

Brand : Cisco

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Cisco SFP-H10GB-CU5M 10gbase-cu Sfp+ Cable, Data Rate 10.5Gb/s, Voltage 3.3V, Length 5 m, Impedance 100 ?, Wire Gauge 24AWG, Cable Jacket Type PVC, Connector SFP+/SFP+. The Cisco 10GBASE SFP+ modules (Figure 1) offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Ask a question about this product

$143.00

Buy Now

Estimated Shipping

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Cisco |Model # SFP-H10GB-CU5M

The Cisco 10GBASE SFP+ modules (Figure 1) offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Cisco SFP+ Copper Twinax cables are suitable for very short distances. Twinax cables offer a highly cost-effective way to connect within racks and across adjacent racks.

Features:

Support for multi-gigabit data rates up to 10.5Gbps
Support for 1x, 2x, 4x and 8x Fibre Channel data rates
Hot-pluggable SFP 20PIN footprint
Single 3.3V power supply
Compatible to SFP+ MSA
Operating temperature range: 0 to 70°C
RoHS Compliant and Lead-Free.

Overview:

Wire Gauge: 24AWG
Minimum cable bend radius: 35 mm
Cable Jacket Type: PVC
Connector: SFP+/SFP+
Digital Diagnostic Monitoring: N/A

Manufacturer Warranty: 01 Years Limited Warranty

Technical Specifications

Optcore Part Number	SFP-10G-DAC-P5M-CSC
Form Factor	SFP+ DAC Cable
Data Rate	10.5Gb/s
Passive or actively equalized	Passive
Supply Voltage	3.3V
Length	5 m
Impedance	100 Ω
Type	Twinax
Wire Gauge	24AWG
Minimum cable bend radius	35 mm
Cable Jacket Type	PVC
Connector	SFP+/SFP+
Digital Diagnostic Monitoring	N/A
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C
Weight	0.4 kg
Application	Storage Area Networks( SAN) Network Attached Storage Switched fabric I/O High density connections between networking equipment Data center cabling infrastructure
Compliance	SFF-8472,SFF-8431 IEC/EN 61000-4-2 MIL-STD -883E, RoHS
