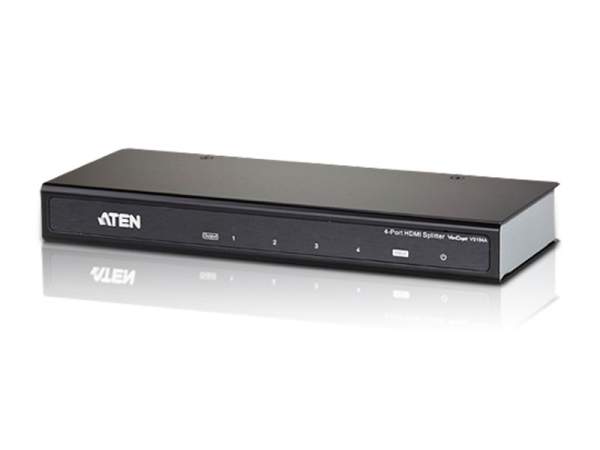

Aten VS184A 4 Port 4K HDMI Splitter VS184A-AT-U

Sku: VS184A-AT-U

Availability: Out of Stock

Brand: ATEN

Category: Network Accessories

$113.30

The ATEN VS184A 4-Port HDMI Splitter connects a single HDMI source to four displays simultaneously, supporting 4K Ultra HD resolution, 3D, and Deep Color. With HDCP compatibility and Dolby True HD/DTS HD audio, it’s ideal for home theaters, corporate, educational, and commercial setups.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: VS184A-AT-U



The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.



The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.



Package Contents

  • 1x VS184A 4-Port HDMI Splitter
  • 1x Power Adapter
  • 1x HDMI Cable
  • 1x User Instructions
  • Connects one HDMI source to four HDMI displays at the same time
  • HDMI (3D, Deep Color, 4K); HDCP Compatible
  • Supports resolutions of up to Ultra HD 4k x 2k
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission – up to 15 m (24 AWG)
  • Supports max. data rate of 10.2 Gbps
  • Plug-and-play – no software installation required

    Note: Long distance transmission up to 20m (with ATEN 2L-7D20H)

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3m @3840x2160@30Hz (4:4:4)
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 15m @3840x2160@30Hz (4:4:4)
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
Output 4 x HDMI Type A Female (Black)
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:6.02W:28BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50 °C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.47 kg ( 1.04 lb )
Dimensions (L x W x H) 20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
