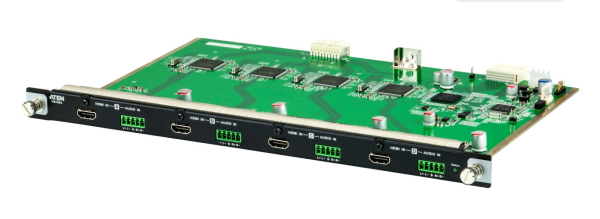

Aten VM7804-AT VanCryst HDMI Input Board VM7804-AT

Sku: VM7804-AT

Availability: Out of Stock

Brand: ATEN

Category: KVM Switch

$1,738.00

The ATEN VM7804 4-Port HDMI Input Board seamlessly integrates with ATEN Modular Matrix Switches, allowing routing of 4 HDMI audio/video sources to 4 displays. With support for HDTV resolutions up to 1080p, HDMI audio extraction, and stereo embedding, it ensures exceptional video and audio performance.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: VM7804-AT



The VM7804 4-Port HDMI Input Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.


The VM7804 also supports HDMI audio can be extracted and stereo audio that can be embedded.



Package Contents

  • 1x VM7804 4-Port HDMI Input Board
  • 4x Terminal Blocks
  • 1x User Instructions
  • Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • HDMI (3D, Deep Color); HDCP 1.4 Compatible
  • Consumer Electronics Control (CEC) support
  • EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
  • Built-in EDID wizard – provides an easy way to customized EDID settings
  • Hot-swappable design for easy integration of I/O boards
  • Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded

Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Up to 5m
Video
Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1920 x 1080
Audio
Input 4 x Captive Screw Connector, 5 Pole
*Audio signal type: stereo, balanced/unbalanced.
Power Consumption 7W:33BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.58 kg ( 1.28 lb )
Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)
Carton Lot 2 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
