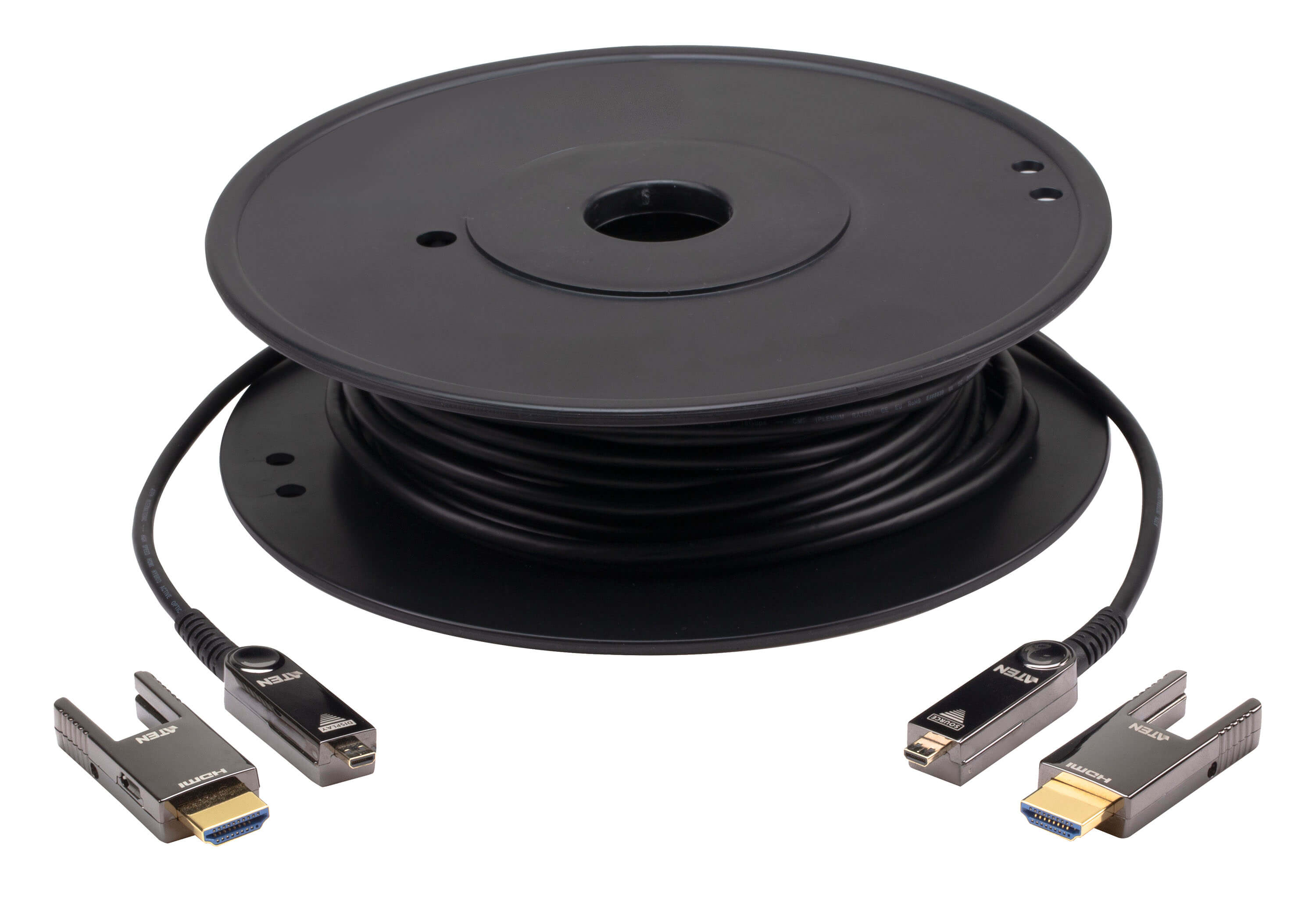

The ATEN VE7832A is a 20-meter Active Optical HDMI cable that transmits True 4K video at 60Hz (4:4:4) over long distances with minimal signal degradation. With support for HDR, ARC, HEC, Dolby TrueHD, and DTS-HD Master Audio, it delivers premium audio-visual performance with reduced EMI and robust durability.
We Accept
Manufacture: ATEN | Model: VE7832A-AT
The ATEN VE7832A is a high-performance 20M True 4K HDMI Active Optical Cable that leverages AOC (Active Optical Cable) technology to deliver ultra-high bandwidth (up to 18 Gbps) and True 4K resolution at 60Hz (4:4:4) across long distances—ideal for digital signage, home theaters, control rooms, and commercial AV setups.
This hybrid cable combines optical fiber and copper wire to maintain signal integrity while significantly reducing EMI and RFI. It fully supports HDR, 3D, Deep Color, HDCP 2.2, Audio Return Channel (ARC), and HDMI Ethernet Channel (HEC), making it a future-ready solution for high-definition content delivery.
With gold-plated connectors, Kevlar reinforcement, and pluggable gender design, it ensures secure connections and flexible installation. It meets UL CMP-OF (plenum) flame-retardant standards and supports optional power via Micro USB, ensuring compatibility in demanding environments.
Supports True 4K (4096 x 2160 @ 60Hz, 4:4:4) up to 20 meters
Active Optical Cable (AOC) design for high-speed, low-loss transmission
Supports HDR, 3D, Deep Color, and full HDMI 2.0 features
Compliant with HDCP 2.2
HDMI Ethernet Channel (HEC) – simplifies connectivity for AV-over-IP
Audio Return Channel (ARC) – routes audio back to amplifiers/soundbars without extra cabling
Supports multi-channel audio:
PCM 8-channel
Dolby TrueHD
DTS-HD Master Audio
Pluggable gender and gold-plated connectors for installer-friendly setup
Flame retardant jacket – UL CMP-OF certified
Durable & flexible design:
Bend Radius: 20mm
Pull Strength: 10kg
Compression Resistance: 50kg
Optional Micro USB power for enhanced compatibility
Plug-and-play, no drivers required
| Category | Specification |
|---|---|
| Cable Length | 20 meters / 65.6 ft |
| Cable Type | Hybrid AOC (Optical Fiber + Copper Wire) |
| Connector Types | HDMI 19-pin Type-A Male (Gold-plated, pluggable) HDMI Type-D Male |
| Max Resolution | 4096 x 2160 @ 60Hz (4:4:4) |
| Color Depth | 30 / 36 / 48 bit |
| Color Sub-sampling | 4:4:4 / 4:2:2 / 4:2:0 |
| Max. Data Rate | 18 Gbps (6 Gbps per channel) |
| Max. Pixel Clock | 600 MHz |
| Audio Support | PCM 8-channel, Dolby TrueHD, DTS-HD Master Audio |
| Compliance | HDMI (3D, Deep Color, 4K, HDR, ARC, HEC) HDCP 2.2 |
| Power Supply | Optional Micro USB to USB (5V, 250mW max) |
| Power Consumption | 0.25W / 1 BTU/h |
| Construction | 7x Tinned Copper + 4x OM3 Optical Fiber (50/125µm) |
| Shielding | AL Mylar shielding / Kevlar filling |
| Jacket Material | UL CMP-OF (Plenum Rated) |
| Connector Housing | Zinc Alloy |
| Outer Diameter | 4.5mm (± 0.2mm) |
| Environmental | Operating: 0°C to 50°C Storage: -20°C to 70°C Humidity: 0–85% RH |
| Physical Properties | Weight: 0.55 kg (1.21 lb) |
| Certifications | CE / FCC / RoHS2 / UL CMP-OF |
| Carton Lot | 10 pcs |
