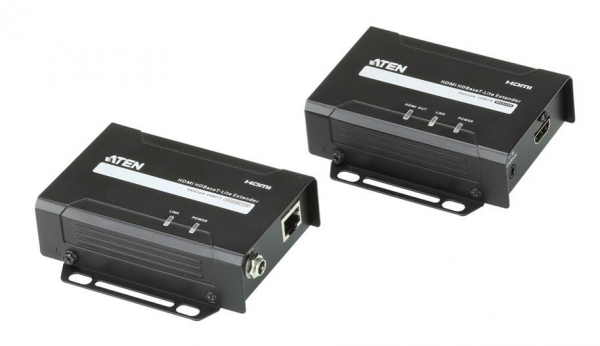

ATEN Ve-801 Hdmi Extender Over Hdbaset Via Cat6 VE801-AT-U

Sku: VE801-AT-U

Brand: ATEN

Category: HDMI-Monitor

$360.80

Shipping Information

Availability: In Stock

Ships in 1-3 days or pickup from Seven Hills in 3-5 days.

Shipping Calculator

Find

The VE801 HDMI HDBaseT-Lite Extender transmits HDMI signals up to 70 meters over a single Cat 5e/6/6a cable, supporting 3D, Deep Color, 4K resolution, and HDCP 2.2. Its all-in-one design ensures easy installation, and it provides exceptional video quality, making it ideal for digital entertainment centers or installations requiring long-distance HDMI signal extension.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: VE801-AT-U



The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.



Package Contents

  • 1x VE801T/R HDMI HDBaseT-Lite Extender
  • 2x Power Adapters
  • 1x User Instructions



  • Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
  • Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • Plug-and-play
  • Rack-mountable

Function VE801R VE801T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ω N/A
Max. Distance 3 m N/A
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)		 HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		 Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Connectors
Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
Power Consumption DC5V:4.24W:20BTU

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.		 DC5V:1.86W:9BTU

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50°C 0-50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0% - 80% RH, Non-condensing 0% - 80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.25 kg ( 0.55 lb ) 0.24 kg ( 0.53 lb )
Dimensions (L x W x H) with bracket 9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)		 9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket 9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)		 9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)
