Zylax Computers | Aten VC182-AT-U VGA/Audio to HDMI Converter with Scaler VC182-AT-U

Aten VC182-AT-U VGA/Audio to HDMI Converter with Scaler VC182-AT-U

Sku: VC182-AT-U

Availability: Out of Stock

Brand: ATEN

Category: Network Accessories

$337.70

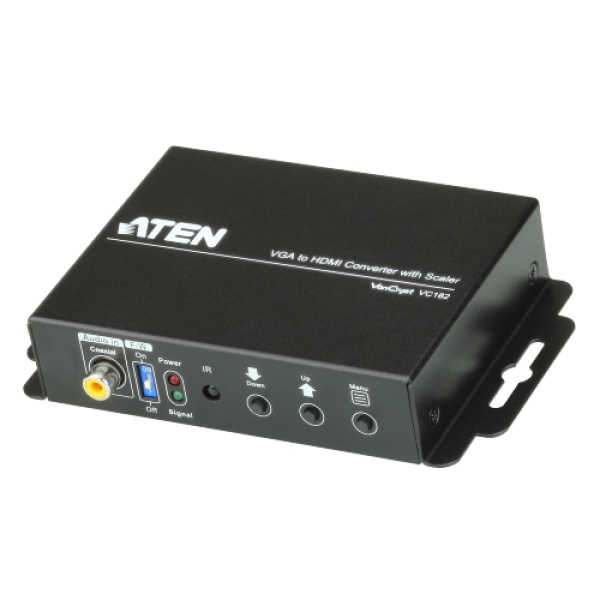

The ATEN VC182 VGA to HDMI Converter with Scaler seamlessly converts VGA signals to HDMI output with superior video quality up to 1080p. Featuring a premium scaling engine, 3D deinterlacing, and OSD configuration, it ensures optimal image clarity and smooth video playback for professional setups.

100% Guarantee Safe Checkout

Description

Manufacture: Aten | Model: VC182-AT-U

The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way of converting VGA input signals into digital video (HDMI). The VC182 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

You can operate the VC182 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.

Package Contents

1x VC182 VGA to HDMI Converter with Scaler
1x Power Adapter
1x Software CD
1x User Instructions

Converts VGA signals to HDMI output
Supports analog / digital audio
Superior video quality – up to 1080p, 1920 x 1200
Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
Features a built in high-performance scaler function for best image quality
Features a superior de-interlacer function for smooth video playback quality
Built-in OSD function for video and system settings confi guration
Integrated superior video noise reduction
Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
Automatically detects video input signals
LED indication of power status and source device
No software required – eliminates incompatibility and installation issues
Device configuration using a utility tool via mini USB port
Supports 16:9 and 4:3 video aspect ratios
Multiple selectable video resolutions

Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Video
Max. Pixel Clock	165 MHz
Max. Resolution	Up to 1080p
Scaler Resolutions	640x480; 800x600; 1024x768; 1280x1024; 1360x768; 1400x1050; 1600x1200; 1440x900; 1680x1050; 1920x1080; 1920x1200; 720p; 1080p
Audio
Input	Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:1.56WBTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 - 60 ºC
Humidity	20 - 90% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.31 kg ( 0.68 lb )
Dimensions (L x W x H)	11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.)
Carton Lot	5 pcs
Video Input
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 Ω
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
