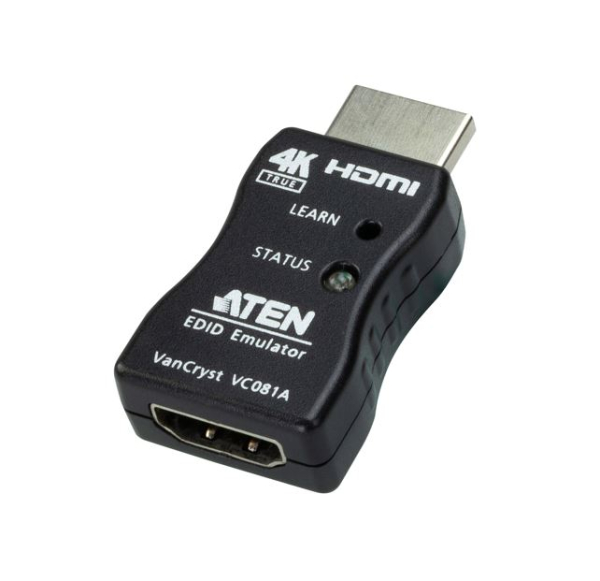

Aten VC081A True 4K HDMI EDID Emulator Adapter VC081A-AT

Sku: VC081A-AT

Availability: Out of Stock

Brand: ATEN

Category: Network Accessories

$70.40

The ATEN VC081A True 4K HDMI EDID Emulator ensures seamless communication between HDMI sources and displays by learning and storing EDID data. It supports 4K video, eliminates display issues, and features a user-friendly EDID learning mode.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: VC081A-AT



As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.



The VC081A contains a unique “Learn Button Switch” to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.



Package Contents

  • 1x VC081A HDMI EDID Emulator
  • 1x user instructions
  • Manages EDID communication between connected devices
  • Effectively learns and saves the EDID from the connected HDMI display via single pushbutton and relays it to the video source
  • HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • Supports superior video quality up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) via EDID Learning Mode
  • LED indicators to show learning status
  • Powered by HDMI source
  • Compact and lightweight design

Video Input
Interfaces 1 x HDMI Type A Male (Black)
Impedance 100 Ω
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Video
Compliance HDMI (3D, Deep Color, True 4K)
HDCP 2.2 Compatible
Consumer Electronic Control (CEC)
Max. Resolution Default: 1080P@60Hz
Learning: 3840x2160@60Hz 4:4:4 & 4096x2160@60Hz 4:4:4
EDID Settings EDID Mode: Default / Learning
Connectors
Power Bus-powered (5V DC from source device)
Switches
Mode Switch EDID Learning
LEDs
Status Learning (Blue x 1)
Power Consumption DC5V:0.1WBTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 50 ºC
Storage Temperature -20 - 60 ºC
Humidity 0 - 80% RH,  Non-Condensing
Physical Properties
Housing Plastic
Weight 0.08 kg ( 0.18 lb )
Dimensions (L x W x H) 4.40 x 2.40 x 1.18 cm
(1.73 x 0.94 x 0.46 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
