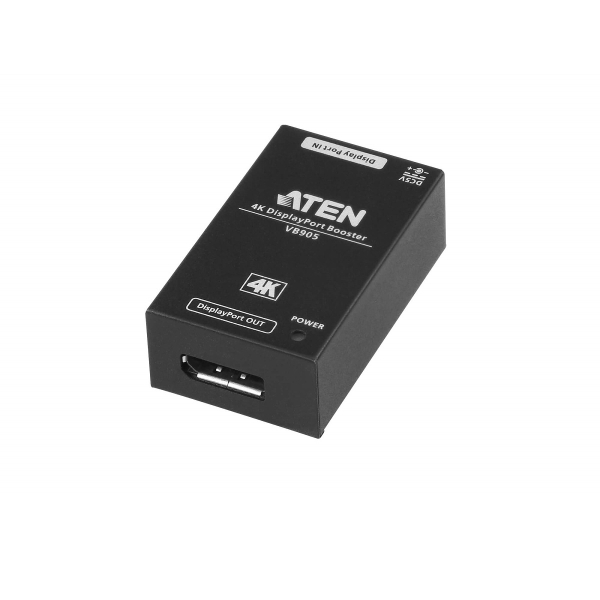

Aten VB905-AT-U True 4K DisplayPort Booster VB905-AT-U

Sku: VB905-AT-U

Availability: In Stock

Brand: ATEN

Category: Network Accessories

$128.70

The ATEN VB905 4K DisplayPort Booster extends True 4K signal up to 5 meters and can cascade up to 3 levels for a total of 20 meters, ensuring excellent video quality and HDR support.

100% Guarantee Safe Checkout

Description

Manufacture: Aten | Model: VB905-AT-U

ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.

The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellent fl exibility for managing both work and home settings.

Package Contents

1x VB905 4K DisplayPort Booster
1x Power Adapter
1x User Instructions

Extends True 4K signal transmission up to 5 m
Compliant with DisplayPort 1.2a and HDCP 2.2
Superior video quality – up to True 4K resolutions of 4096 x 2160 @ 60 Hz (4:4:4)
Supports HDR
Cascade 3 levels to extend True 4K signal up to 20 m
A single unit can be powered from the source device
Plug-and-play
Rack mountable

Note: Longer transmission distance is possible with lower data rates. If you want to remain high quality transmission, please use higher quality cable.

Video Input
Interfaces	1 x DisplayPort Female (20-pin)
Max. Distance	Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m
Video Output
Interfaces	1 x DisplayPort Female (20-pin)
Max. Distance	Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m
Video
Max. Data Rate	21.6 Gpbs (5.4 Gbps Per Lane)
Compliance	DP1.2a HDCP 2.2
Max. Resolution	4096 x 2160@60Hz (4:4:4)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.937W:4BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.05 kg ( 0.11 lb )
Dimensions (L x W x H)	5.84 x 3.53 x 2.06 cm (2.3 x 1.39 x 0.81 in.)
Carton Lot	10 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
