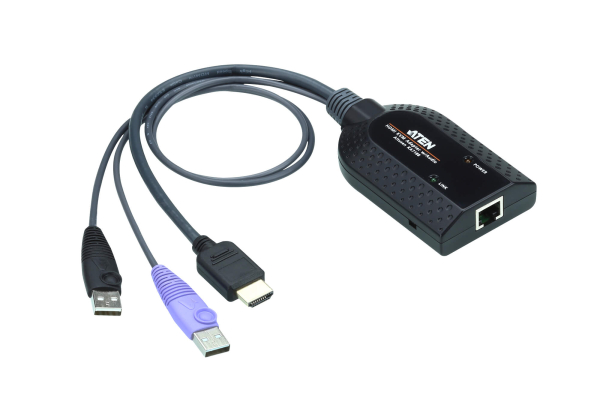

Name: Aten USB HDMI Virtual Media KVM Adapter Cable
Brand: ATEN
SKU: KA7188-AX
Price: 388.30 AUD
Availability: OutOfStock

Aten USB HDMI Virtual Media KVM Adapter Cable

Sku: KA7188-AX

Brand: ATEN

Category: KVM Cables-Accessories

$388.30

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

Compact KA7188 KVM adapter cable connects KVM switches to HDMI and USB-equipped target computers, offering advanced functionality including Audio De-Embedder and Virtual Media support.

Ask more about this product

We Accept

Description

Manufacture: Aten | Model: KA7188-AX

The KA7188 KVM Adapter connects a KVM switch to the HDMI video and USB ports of a target computer.¹ The KA7188 supports HDMI output and provides two USB plugs to connect a target computer for keyboard / mouse, Virtual Media, or Smart Card / CAC Reader functions.²

The KA7188 supports Audio De-Embedder, which extracts the audio from an HDMI signal. ³More advanced features of KA7188 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.

Note:
1. Both USB connectors must be plugged into USB ports on the target computer for the KA7188 to receive sufficient power.
2. Please refer to the webpage of KVM Adapter Compatibility List for information about compatible KVM Switches.
3. The HDMI audio signals separated by the KA7188's Audio De-Embedder are output through the KVM switches.

Package Contents

1x KA7188 KVM Adapter Cable

Connects a KVM switch to the HDMI video and USB ports of a target computer
Supports Audio De-Embedder
Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
Virtual Media Support
Smart Card / CAC Reader Support
Superior video quality – supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
Compact size
Firmware upgradeable

Note:
This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches. Both the video and audio signals might interfere while using an unshielded cable, and long-distance transmission can cause more serious interference. Generally, the interference happens when the transmission distance is over 40 meters.

Connectors
Link	1 x RJ-45 Female
Computer	2 x USB Type A Male 1 x HDMI Male
LEDs
Link	1 (Green)
Power	1 (Orange)
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20–60°C
Physical Properties
Housing	Plastic
Weight	0.11 kg ( 0.24 lb )
Dimensions (L x W x H)	9.10 x 5.60 x 2.14 cm (3.58 x 2.2 x 0.84 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
