Aten USB-C Virtual Media KVM Adapter

Sku: KA7183-AX

Availability: Out of Stock

Brand: ATEN

Category: KVM Cables-Accessories

$343.20

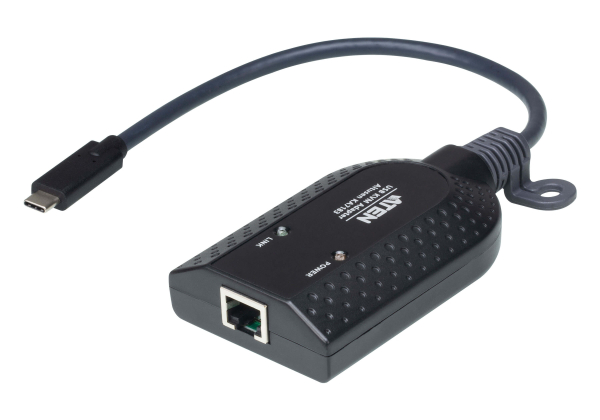

The KA7183 USB-C Virtual Media KVM Adapter connects Cat 5 KVM switches to USB-C target computers, supporting Full HD video, virtual media, smart card/CAC reader, and seamless signal compensation.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: KA7183-AX



The KA7183 KVM Adapter empowers any Cat 5 KVM switch* to connect to and manage a USB-C compatible target computer. Via just a single USB-C plug, it is able to connect a target computer while fulfilling keyboard, video, mouse, and virtual media or smart card / CAC reader functions.



Advanced features provided by KA7183 include superior signal compensation and delay skew technologies for greatly enhanced video quality, as well as its user-friendly, compact and lightweight design.


*Please refer to the KVM Adapter Cable Compatibility List for details.The KA7183 is only compatible with the KH1508A/ KH1516A / KH1532A / KL1508A / KL1516A FHD version.



Package Contents

  • 1x KA7183 USB-C Virtual Media KVM Adapter
  • 1x USB holder kit
  • 1x user instructions



  • Connects any Cat 5 KVM switch to a target computer via a single USB-C*
  • Superior video quality – supports Full HD resolution of up to 1920 x 1200**
  • Auto Signal Compensation (ASC) – no DIP switch setting needed for different distances
  • Keyboard and mouse emulation – keeps the server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
  • Virtual media support***
  • Smart card / CAC reader support***
  • Built-in ASIC for greater stability and compatibility
  • Supports hot-plugging
  • Compact size
  • Upgradeable firmware

    **This maximum resolution may vary depending on the transmission distance.
    ***For more details, please refer to the product pages of the connecting KVM switches.

Connectors

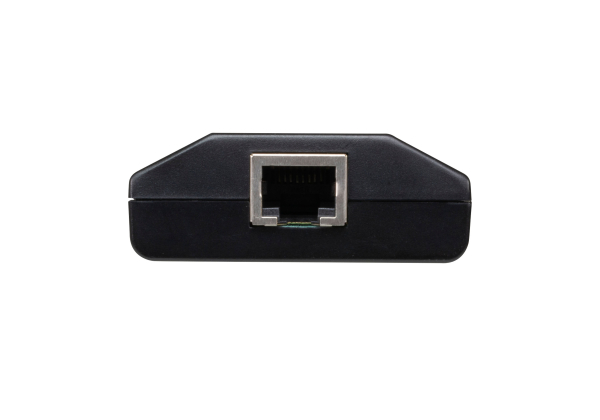

Link 1 x RJ-45 Female
Computer 1 x USB Type C Male

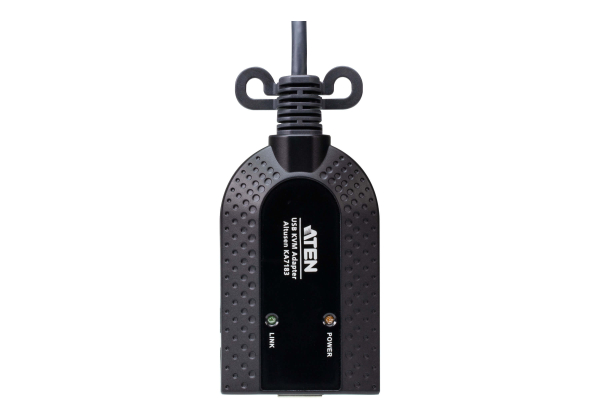

LEDs
Link 1 (Green)
Power 1 (Orange)
Power Consumption DC5V:2.61W:12BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50°C
Storage Temperature -20–60°C
Physical Properties
Housing Plastic
Weight 0.07 kg ( 0.15 lb )
Dimensions (L x W x H) 9.10 x 5.60 x 2.12 cm
(3.58 x 2.2 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
