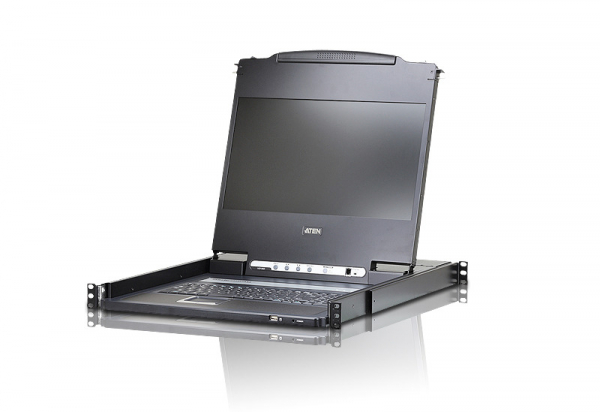

ATEN Rackmount USB DVI- VGA/HDMI Single Rail Slideaway 17.3 (CL6700MW-ATA-AU)

Sku: CL6700MW-ATA-AU

Availability: In Stock

Brand: ATEN

Category: KVM Switch

$1,822.70

The CL6700 is a versatile LCD KVM console, available in both 17.3" (Full HD) and 19" (1280x1024) models. It integrates a KVM switch, keyboard, and touchpad into a 1U sliding housing, supporting multiple video interfaces like HDMI, DVI, and VGA. This space-saving design is ideal for controlling up to eight computers, providing a sleek and efficient solution for professional IT environments.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: CL6700MW-ATA-AU



The CL6700 features an integrated 17.3" (CL6700MW) or 19” (CL6700N) LED-backlit LCD panel, a full keyboard, and a touchpad in a 1U rack-mountable sliding housing with audio support. The CL6700 LCD KVM console provides front end access to compatible KVM switches utilizing space with a module that closes flat and slides into the rack.

The CL6700MW supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. For added convenience, the 17.3" full HD console features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard, USB mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel.

While the CL6700MW supports multiple video interfaces, the CL6700N is a dedicated front end sliding console for compatible DVI KVM switches. The CL6700N supports DVI video input and provides ports for the second KVM console (USB keyboard, USB mouse and DVI or VGA monitor) on the rear panel. Both of the CL6700MW and CL6700N include two mini stereo ports for connecting audio speakers.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL6700 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

CL6700MW: 17.3" LCD screen with Full HD resolution of 1920 x 1080
CL6700N: 19" LCD screen with resolution of 1280 x 1024 (Discontinued)



Package Contents

  • 1x CL6700 LCD Console with Standard Rack Mount Kit
  • 1x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
  • 1x Power Cord
  • 1x Firmware Upgrade Cable
  • 1x User Instructions



  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700MW)
  • Integrated KVM console with a 19" DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700N)
  • Superior video quality – up to 1920 x 1080 @ 60Hz (CL6700MW); up to 1280 x 1024 @75 Hz (CL6700N)
  • Supports an external console with USB / DVI / VGA / HDMI connectors (CL6700MW); supports an external console with USB / DVI / VGA connectors (CL6700N)
  • Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
  • Audio support (speakers)
  • Standard rack mount kit included
  • Optional rack mount kits available including easy installation options
  • Standard 105-key keyboard; Sun keyboard emulation
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Firmware upgradeable
  • Console lock - enables the console drawer to remain securely locked away in position when not in use
  • DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor

    More information about "Easy Rack Mounting"...

Function CL6700MW CL6700N
Computer Connections
Direct 1 1
Console Selection Hotkey Hotkey
Connectors
KVM Ports 1 x USB Type-B Female
1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Male (Blue)
1 x 3.5mm Audio Jack Female (Green)		 1 x USB Type B Female
1 x DVI-I Female (White)
1 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x RJ-11 Female 1 x RJ-11 Female
Power 1 x IEC 60320/C14 1 x IEC 60320/C14
External Console Ports 2 x USB Type-A Female
1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
1 x 3.5mm Audio Jack Female (Green)		 2 x USB Type A Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral 1 x USB Type A Female (Front) 1 x USB Type A Female (Front)
Switches
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Power 1 x Rocker Switch 1 x Rocker Switch
LCD Control 4 x Pushbutton 4 x Pushbutton
LCD Power 1 x LED Pushbutton 1 x LED Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)		 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)		 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 17.3" TFT-LCD 19" TFT-LCD
Resolution 1920 x 1080 @ 60 Hz 1280 x 1024 @ 75 Hz
Response time 16 ms 5 ms
Viewing Angle 170° (H), 170° (V) 170° (H), 160° (V)
Pixel Pitch 0.1989 mm x 0.1989 mm 0.294 mm x 0.294 mm
Support Color 16.77M colors 16.77M colors
Contrast Ratio 800 : 1 1000 : 1
Luminance 250 cd/m² 250 cd/m²
Video
Input Video Resolution up to 1920 x 1200 @ 60Hz (all resolution @ 60Hz only);
1920 x 1080 @ 60 Hz, DDC2B		 1280 x 1024 @ 75Hz, DDC2B
Emulation
Keyboard / Mouse USB USB
Maximum Input Power Rating 100-240V AC; 50-60Hz; 1A 100-240V AC; 50-60Hz; 1A
Power Consumption AC110V:21.2W:106BTU/h
AC220V:20.8W:104BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.		 AC110V:21.2W:106BTU/h
AC220V:20.8W:104BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–40°C 0–50°C
Storage Temperature -20–60°C -20–60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Rail Type Single Rail Single Rail
Weight 11.38 kg ( 25.07 lb ) 11.38 kg ( 25.07 lb )
Dimensions (L x W x H) 48.00 x 58.92 x 4.40 cm
(18.9 x 23.2 x 1.73 in.)		 48.00 x 58.92 x 4.40 cm
(18.9 x 23.2 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
