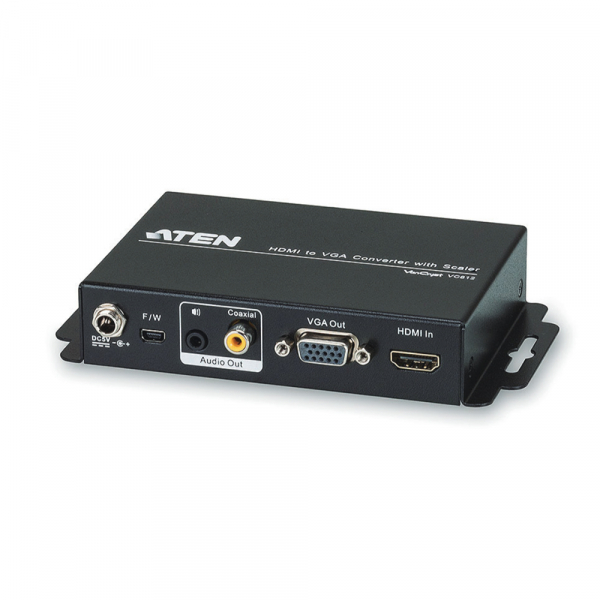

ATEN Hdmi To Vga Converter With Scaler ( VC812-AT-U

Sku: VC812-AT-U

Availability: Out of Stock

Brand: ATEN

Category: Misc Adaptors

$332.20

The VC812 HDMI to VGA converter with Scaler provides an easy solution for converting HDMI input to analog VGA output. With a high-performance scaler, it ensures superior image quality, supports audio, and includes built-in features like de-interlacing and color enhancement for optimal viewing.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: VC812-AT-U



The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.


You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.



Package Contents

  • 1x VC812 HDMI to VGA Converter with Scaler
  • 1x Power Adapter
  • 1x Software CD
  • 1x User Instructions



  • Converts HDMI signals to VGA output
  • Supports analog/digital audio
  • Superior video quality – up to 1080p; 1920 x 1200
  • Features a built in high-performance scaler function for best image quality
  • Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
  • 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
  • Features a superior de-interlacer function for smooth video playback quality
  • Built-in OSD function for video and system settings configuration
  • Integrated superior video noise reduction
  • Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
  • Automatically detects video input signals
  • LED indication of power status and source device
  • No software required – eliminates incompatibility and installation issues
    Note: The VC812 does not support HDCP

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Video Output
Interfaces 1 x HDB-15 Female (Black)
Impedance 75 Ω
Video
Max. Pixel Clock 165 MHz
Max. Resolution Up to 1920 x 1200
Scaler Resolutions 480p; 576p; 800 x 600;  1024 x 768;  1280 x 720;  1280 x 1024;
1360 x 768;  1440 x 900; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200
Audio
Output Analog: 1 x Mini  Stereo Jack  Female (Black)
Digital: 1 x RCA  (Yellow)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:2.125WBTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 40 ºC
Storage Temperature -20 - 60 ºC
Humidity 20 - 90% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.29 kg ( 0.64 lb )
Dimensions (L x W x H) 11.00 x 8.30 x 2.80 cm
(4.33 x 3.27 x 1.1 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
