ATEN Hdmi Edid VC080-AT

Brand : ATEN
SKU : VC080-AT
Availablity : on-order
6 to 8 weeks Delivery Time Due To Covid 19
ATEN Hdmi Edid VC080-AT, Impedance 100 Ω, Interface 1 x HDMI Type A Female (Black), Output 1 x HDMI Type A Female (Black), Connectors 1 x DC Jack, Metal.   The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution. ...
$116.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa
  • Description
  • Specifications

Product Description

Manufacture # ATEN | Model # VC080-AT

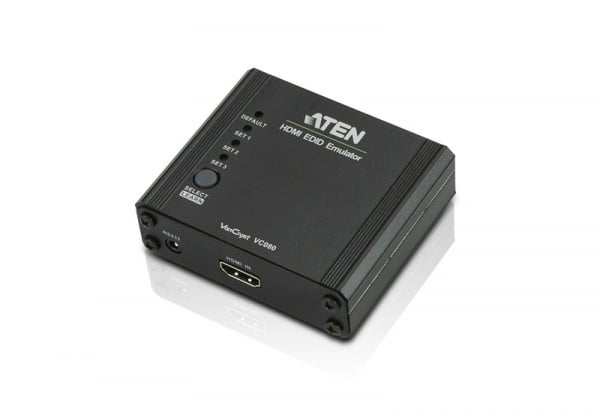

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution. The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.



Features:

  • EDID Wizard allows a user an easy way to manage EDID settings
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • EDID mode selection – Default, Learning , Programming
  • HDMI (3D, Deep Color), HDCP compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • Automatically manages EDID communication between connected devices
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • LED indication of video source devices.



Overview:

  • Impedance: 100 Ω
  • Interface: 1 x HDMI Type A Female (Black)
  • Output: 1 x HDMI Type A Female (Black)
  • Connectors: 1 x DC Jack



Manufacturer Warranty: 01 Years Limited Warranty

Technical Specifications

Impedance 100 Ω
Interface 1 x HDMI Type A Female (Black)
Compliance HDMI (3D, Deep Color)
HDCP Compatible
Consumer Electronic Control (CEC)
Output 1 x HDMI Type A Female (Black)
EDID Settings EDID Mode: Default / Learn / Customized (EDID Wizard support)
Connectors 1 x DC Jack
Consumption 5 VDC, 0.15W
Operating Temperature 0 - 50 ºC
Storage Temperature -20 - 60 ºC
Humidity 0 - 80% RH, Non-Condensing
Housing Metal
Weight 0.15 kg
Dimensions (L x W x H) 7.90 x 7.76 x 2.45 cm
Carton Lot 5 pcs
