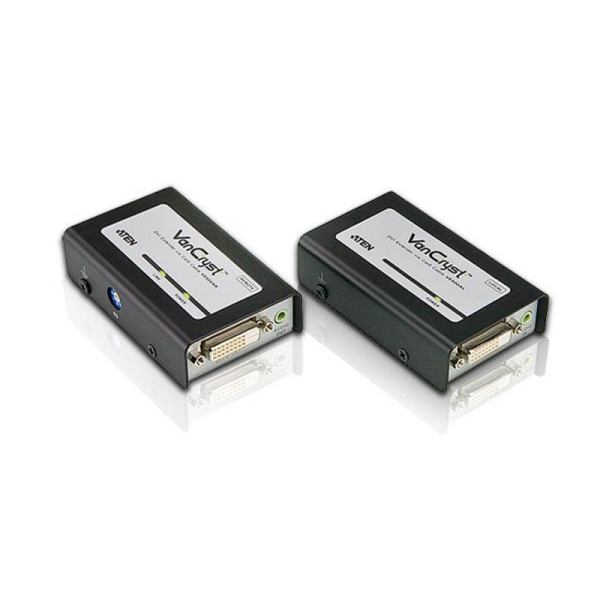

Aten DVI Video Extender with Audio, Black VE600A-AT-U

Sku: VE600A-AT-U

Availability: Out of Stock

Brand: ATEN

Category: Network Accessories

$224.40

The VE600A DVI Extender with Audio extends DVI video and stereo audio up to 200 ft via Cat 5e cables, offering high-quality video resolution up to 1920x1200 and support for widescreen formats.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: VE600A-AT-U



The VE600A DVI Extender with Audio extends your DVI display up to 200 feet (60 m) away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.



Package Contents

  • 1x VE600A DVI Extender with Audio Local Unit
  • 1x VE600A DVI Extender with Audio Remote Unit
  • 2x Power Adapters
  • 1x Rack Mount Kit
  • 2x Grounding Wire
  • 1x User Guide
  • Extends the distance between DVI source and DVI display device
  • Long distance transmission – up to 200 ft
  • Uses Cat 5e cable to connect the local and remote units
  • Superior video quality – up to 1920x1200 (130 ft); 1080p (130ft) ; 1080i (200 ft)
  • Audio enabled
  • Adjustable EQ compensation control
  • Supports widescreen formats
  • Rack mountable
  • HDCP Compatible

Function VE600AL VE600AR
Video Input
Interfaces 1 x DVI-D Female (White) N/A
Impedance 100 Ω N/A
Max. Distance 1.8 m N/A
Video Output
Interfaces N/A 1 x DVI-D Female (White)
Impedance N/A 100 Ω
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz 225 MHz
Compliance HDCP Compatible HDCP Compatible
Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Up to 1080p@40m; 1080i@60m
Audio
Input 1 x Mini Stereo Jack Female (Green) N/A
Output N/A 1 x Mini Stereo Jack Female (Green)
Connectors
Power 1 x DC Jack 1 x DC Jack
Power Consumption DC5.3V:1.56W:7BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.		 DC5.3V:0.76W:4BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 50°C 0 - 50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.17 kg ( 0.37 lb ) 0.17 kg ( 0.37 lb )
Dimensions (L x W x H) 9.13 x 5.60 x 2.40 cm
(3.59 x 2.2 x 0.94 in.)		 9.13 x 5.60 x 2.40 cm
(3.59 x 2.2 x 0.94 in.)
Carton Lot 20 pcs 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
