Name: ATEN Dvi Edid VC060-AT
Brand: ATEN
SKU: VC060-AT
Price: 112.20 AUD
Availability: OutOfStock

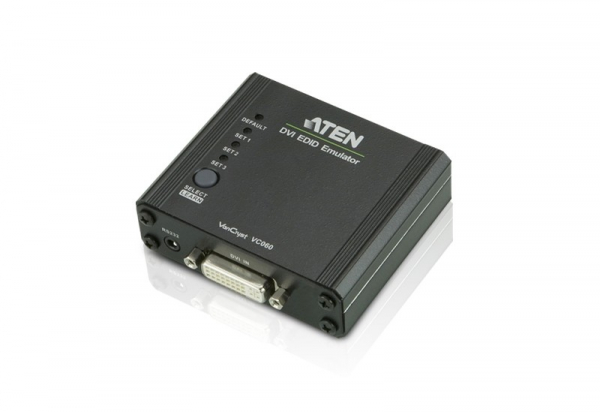

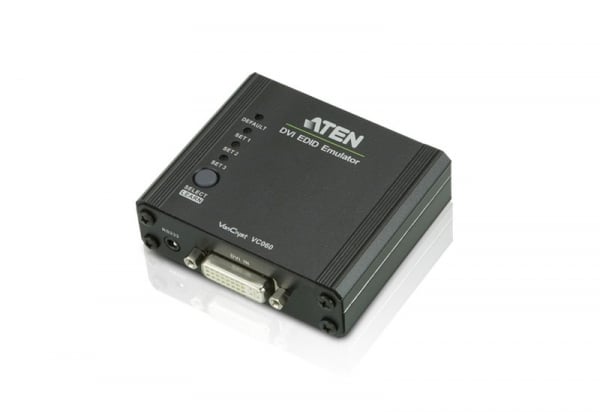

ATEN Dvi Edid VC060-AT

Sku: VC060-AT

Brand: ATEN

Category: Misc Adaptors

$112.20

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

The ATEN VC060 is a DVI EDID Emulator that emulates and stores EDID data from a display to optimize video resolution for DVI source devices. With three flexible EDID modes (Default, Programming, and Learning), this emulator ensures smooth video experiences for any installation. It also includes an easy-to-use EDID Wizard for managing settings and supports HDTV resolutions up to 1920x1200.

We Accept

Description

Manufacture: Aten | Model: VC060-AT

The ATEN VC060 is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a DVI source device to efficiently optimize video resolution.

The ATEN DVI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Package Contents

1x VC060 DVI EDID Emulator with Programmer
1x RS-232 Configuration Cable
1x USB to DC Power Cord
1x User Instructions

Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
EDID Wizard – allows a user an easy way to manage EDID settings
EDID mode selection – Default, Learning , Programming
Automatically manages EDID communication between connected devices
Signaling rates up to 2.25 Gbits in support of 1080p display
LED indication of video source devices
Supports wide screen
Supports hot-plugging
Non-Powered *
* If the video source is not receiving enough power an external power cord should be connected.

Max. Video Resolution	WUXGA (1920 x 1200)
Data Rate	2.25 Gbits
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.13W:1BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.15 kg ( 0.33 lb )
Dimensions (L x W x H)	7.90 x 7.86 x 2.45 cm (3.11 x 3.09 x 0.96 in.)
Carton Lot	5 pcs
Video Input
Interfaces	1 x DVI-I Female (White)
Impedance	100 Ω
Video Output
Interfaces	1 x DVI-I Female (White)
Impedance	100 Ω
EDID Settings	EDID Mode: Default / Learn / Customized (EDID Wizard support)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
