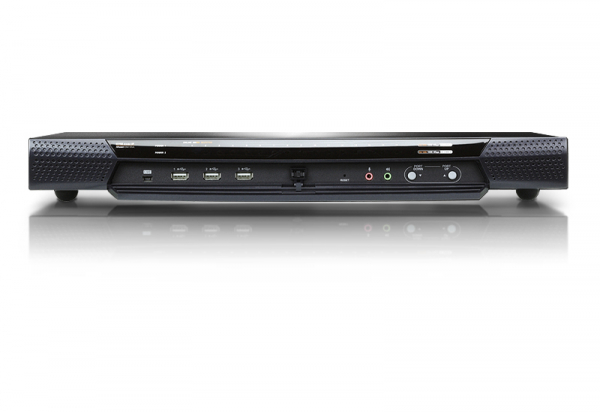

ATEN Altusen 16port Kvm Over Ip Sw - 1local / KN4116VA-AX-U

SKU : KN4116VA-AX-U
Brand : ATEN
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Maximum: 512 (via Cascade), Serial: 1 x RJ-45 Female, PON: 1 x RJ-45 Female, Reset: 1 x Semi-recessed Pushbutton, Power: 2 x Rocker Switches, Keyboard / Mouse: PS/2; USB, Local: 1920 x 1200 @ 60Hz, Remote: 1920 x 1200 @ 60Hz, Scan Interval: 1 – 255 Sec, Housing: Metal.   ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4116VA features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed.
Ask a question about this product
$11,653.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # ATEN | Model # KN4116VA-AX-U



ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4116VA features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.



Features:

  • High grade security supports FIPS 140-2 level 1 security standards
  • Extreme virtual media speed 2 x faster virtual media transmission speed
  • Advanced FPGA graphics processor with an Full HD resolutions of 1920 x 1200.



Overview:

  • Laptop USB Console (LUC) Port: 1 x USB Mini-B Female
  • KVM Ports: 16 x RJ-45 Female
  • Serial: 1 x RJ-45 Female
  • PON: 1 x RJ-45 Female
  • LAN Ports: 2 x RJ-45 Female



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Local 1
Remote 4
Direct 16
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI
Console Ports 2 x USB Type-A Female (White)
1 x DVI-D Female (White)
1 x VGA HDB-15 (Blue)
1 x RJ-45 Female (Black)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 16 x RJ-45 Female
Serial 1 x RJ-45 Female
PON 1 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
Online / Selected 16 (Green/Orange)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Power 2 (Blue)
Keyboard / Mouse PS/2; USB
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Scan Interval 1 – 255 Sec
Maximum Input Power Rating 100–240V~ ; 50-60Hz; 1A
Power Consumption AC110V:50.3W:272BTU
AC220V:48.9W:266BTU
Operating Temperature 0 - 40?C
Storage Temperature -20 - 60?C
Humidity 0 - 80% RH, Non-condensing
Housing Metal
Weight 5.60 kg ( 12.33 lb )
Dimensions (L x W x H) 43.36 x 41.21 x 4.40 cm
(17.07 x 16.22 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
