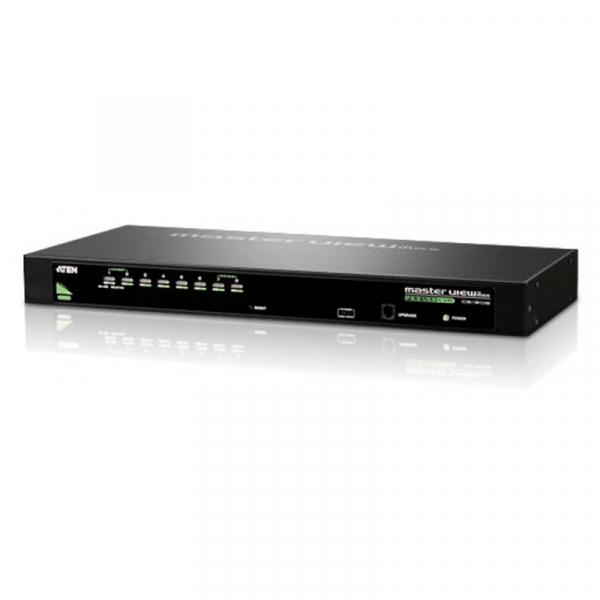

ATEN 8 Port Rackmount Usb-ps/2 Vga Kvm Switch CS1308-AT-U

SKU : CS1308-AT-U
Brand : ATEN
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Direct: 8, Maximum: 64 (via Cascade), Console Ports: 1 x SPHD-18 Male (Yellow), KVM Ports: 8 x SPHD-15 Female (Yellow), Firmware Upgrade: 1 x Slide, Keyboard / Mouse: PS/2 USB, Housing: Metal.   The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers.
Ask a question about this product
$318.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # ATEN | Model # CS1308-AT-U



The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.



Features:

  • One USB-PS/2 console controls 8 computers
  • Cascade up to 2 levels - control up to 64 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection



Overview:

  • Keyboard / Mouse: PS/2, USB
  • Video: 2048 x 1536; DDC2B
  • Scan Interval: 1 – 255 Seconds (Default: 5 secs)
  • Power Consumption: DC5.3V:2.34W:19BTU



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Direct 8
Maximum 64 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 8 x SPHD-15 Female (Yellow)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x DC Jack
Ports 8 x Pushbutton
Firmware Upgrade 1 x Slide
Online 8 (Orange)
Selected 8 (Green)
Power 1 (Dark Green)
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 – 255 Seconds (Default: 5 secs)
Power Consumption DC5.3V:2.34W:19BTU
Operating Temperature 0-50?C
Storage Temperature -20-60?C
Humidity 0-80% RH, Non-condensing
Housing Metal
Weight 1.89 kg ( 4.16 lb )
Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm
(17.21 x 6.35 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
