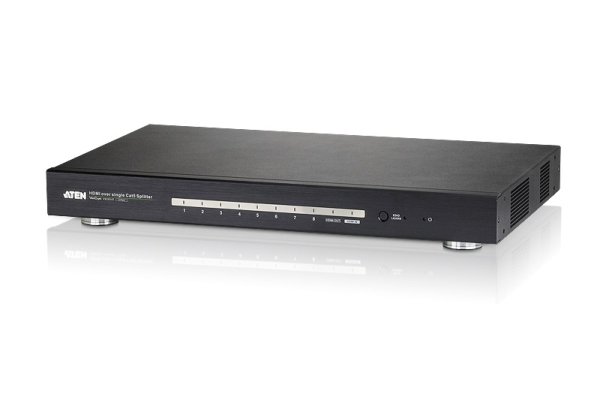

Aten 8-Port HDMI HDBaseT Splitter VS1818T-AT-U

Sku: VS1818T-AT-U

Availability: Out of Stock

Brand: ATEN

Category: Network Accessories

$3,659.70

The ATEN VS1818T HDMI Over Single Cat 5 Splitter extends one HDMI source to up to 8 displays using HDBaseT technology, supporting 4K resolution and distances up to 100m.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: VS1818T-AT-U



The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.

* Compatible with ATEN HDBaseT/HDBaseT-Lite Receiver Unit.


The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.


The VS1818T solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities



Package Contents

  • 1x VS1818T 8-Port HDMI Over Single Cat 5 Splitter
  • 1x Power Cord
  • 1x Mounting Kit
  • 1x User Instructions



  • One HDMI input to 8 HDBaseT outputs via a Cat 5e/6 cable
  • Offers local HDMI output
  • Extends displays up to 100 m
  • Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
  • Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
  • HDMI (3D, Deep color, 4kx2k); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • Consumer Electronics Control (CEC) support
  • Built-in bi-directional RS-232 serial remote port for high-end system control
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports up to 340MHz bandwidth for high performance video
  • EDID mode selection
  • Rack-mountable

    * Note: The VS1818T is compatible with the VE812R HDMI over Single Cat 5 Receiver.

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 1.8 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) - Local Output
8 x RJ-45 Female
Impedance 100 Ω
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
HDBaseT Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
(Depends on connected receiver)
Max. Distance Up to 100 m (Depends on connected receiver)
Audio
Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings EDID Mode: Default / Port 1 / Auto / Learn
Connectors
Power 1 x 3-Prong AC Socket (Black)
Power Consumption AC110V:31.7W:149BTU/h
AC220V:31.7W:149BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 3.58 kg ( 7.89 lb )
Dimensions (L x W x H) 43.24 x 26.11 x 4.40 cm
(17.02 x 10.28 x 1.73 in.)
Carton Lot 1 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
