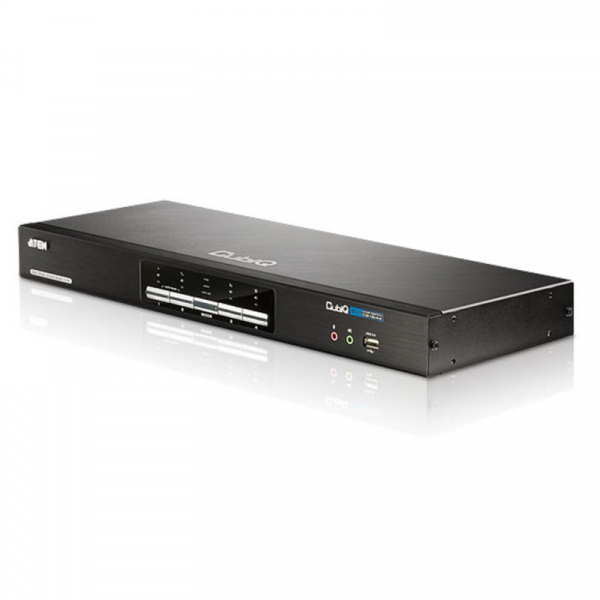

ATEN 4 Port Usb Dual-view Dvi Kvmp Switch CS1644A-AT-U

Sku: CS1644A-AT-U

Availability: Out of Stock

Brand: ATEN

Category: KVM Switch

$875.60

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch integrates advanced multi-view capabilities, allowing you to control four dual-screen computers with a single USB console. Featuring a built-in 2-port USB hub, this switch supports quad-view display setups and provides stunning 3D visuals with nVidia 3D Vision-ready support. Ideal for demanding tasks like graphic design, gaming, and medical applications, it ensures superior video quality and a seamless multi-monitor experience.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: CS1644A-AT-U



The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.


The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.



Package Contents

  • 1x CS1644A 4-Port USB DVI Dual View KVMP™ Switch
  • 4x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
  • 4x DVI-D DL Cable (1.8m/6ft)
  • 1x Power Adapter
  • 1x User Instructions



  • One dual-screen USB console controls four dual-screen computers and two additional USB devices
  • Multi-View Display – Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
  • Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
  • Supports widescreen resolutions
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with DVI specifications; and HDCP compliant
  • Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
  • Sun/Mac keyboard support and emulation **
  • Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports

    * Supports Linux Kernel 2.6 and higher. The CS1644A has a builtin USB 2.0 hub, so will not support PCs or OS that do not support USB 2.0.
    ** PC keyboard combinations emulate Mac keyboards.
    ** Mac keyboards only work with their own computers.

Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse
Connectors
Console Ports 2 x USB Type A Female (rear panel)
2 x DVI-I Female (White)
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 4 x USB Type B Female
8 x DVI-I Female (white)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female (rear panel)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel; 1 x rear panel)
LEDs
KVM 4 (Orange)
Audio 4 (Green)
USB Link 4 (Green)
Switches
Selected 5 x Pushbutton
Emulation
Keyboard / Mouse USB
Video DVI Dual Link: 2560 x 1600 @ 60Hz;
3D Display: 1920 x 1200 @ 120Hz
Scan Interval 1-99 secconds (default: 5 secs.)
Power Consumption DC5.3V:5.34W:51BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic, Metal
Weight 2.32 kg ( 5.11 lb )
Dimensions (L x W x H) 43.72 x 15.98 x 4.40 cm
(17.21 x 6.29 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
