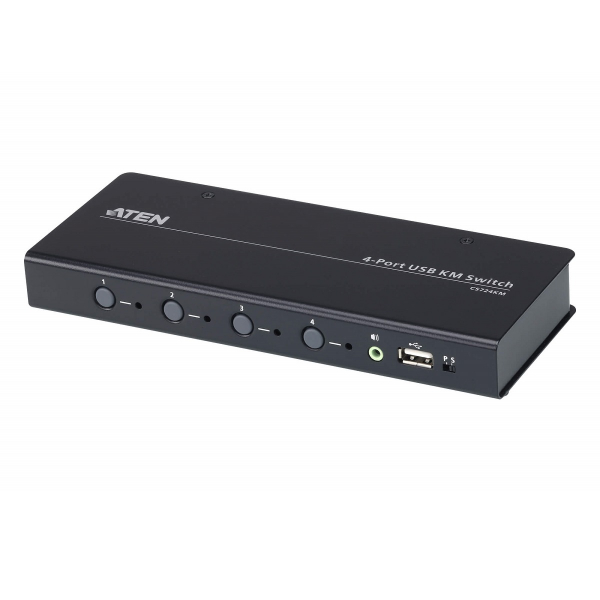

Aten 4-port Usb Boundless Km Switch (cables Included) ( Cs724km-at )

SKU : CS724KM-AT
Brand : ATEN
Availablity : In stock
Ships within 1 and 3 days
Computer Connections: 4, Console Ports: 2 x USB Type A Female, KVM (Computer) Ports: 4 x USB Type B Female, Power: 1 x DC Jack, Port Selection: 4 x Pushbutton, Station Selection: 1 x Slide Switch, Keyboard / Mouse: USB, Housing: Metal / Plastic.   The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.
Ask a question about this product
$695.00

Estimated Shipping

Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Aten | Model # CS724KM-AT



The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.



Features:

  • Single USB keyboard and mouse control up to 4 computers
  • Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
  • Boundless Switching simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
  • Boundless Switching Configuration Utility an intuitive GUI tool that enables users to customize monitor layouts
  • Boundless Switching Focus a window frame to indicate which computer that it currently has the focus



Overview:

  • Computer Connections: 4
  • Port Selection: Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands
  • KVM (Computer) Ports: 4 x USB Type B Female 4 x 3.5mm Audio Jack Female (Green)
  • Power: 1 x DC Jack
  • USB Hub: 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
  • Keyboard / Mouse: USB



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands
Console Ports 2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
1 x RJ-45
KVM (Computer) Ports 4 x USB Type B Female
4 x 3.5mm Audio Jack Female (Green)
Power 1 x DC Jack
USB Hub 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
Port Selection 4 x Pushbutton
Station Selection 1 x Slide Switch
Selected 4 (Green)
Keyboard / Mouse USB
Power Consumption DC5V:1.69W:33BTU
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Housing Metal, Plastic
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.00 x 8.06 x 2.50 cm
(7.87 x 3.17 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
