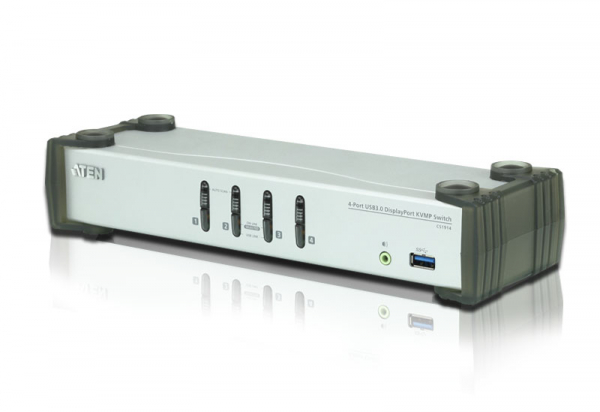

ATEN 4 Port Usb 3.0 4k Displayport Kvmp (kvm CS1914-AT-U

Sku: CS1914-AT-U

Availability: Out of Stock

Brand: ATEN

Category: KVM Switch

$678.70

The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch offers superior video resolution up to 3840 x 2160 @ 30 Hz and high-speed data transfer with USB 3.1 Gen 1 hub, ideal for graphic design, CAD applications, and video post-production. It allows users to control up to four DisplayPort computers with a single USB keyboard, mouse, and monitor, while providing independent switching for KVM, USB, and audio focus. It also features HD audio and superior performance for multimedia tasks.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: CS1914-AT-U



The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.

As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.

ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.

With its rich feature set, the CS1914 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1914 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.



Package Contents

  • 1 x 4-Port USB 3.0 DisplayPort KVMP™ Switch
  • 4 x DisplayPort Cable (1.5m/5ft)
  • 4 x USB Cable (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
  • 4 x Audio Cable (1.8m/6ft)
  • 1 x Power Adapter
  • 1 x User Instructions



  • 4-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
  • One USB console controls 4 computers and 2 USB peripherals
  • Computer selection via front panel pushbuttons, hotkeys and mouse1
  • Independent switching of KVM, USB, and Audio focus
  • Superior video quality – up to 3840 x 2160 @ 30 Hz
  • 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
  • DisplayPort 1.1 compliant, HDCP compliant2
  • Supports HD audio through DisplayPort3
  • Full bass response for high-quality 2.1 channel surround sound systems
  • Power On Detection – if a computer is powered off, the CS1914 automatically switches to the next powered-on computer
  • DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4
  • Hot pluggable – add or remove computers without powering down the switch
  • Keyboard emulation/bypass feature supports most gaming keyboards
  • Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
  • Multi-platform support – Windows, Mac, and Linux
  • Multilingual keyboard mapping supports English, Japanese, French and German keyboards
  • Mac keyboard support and emulation5
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable

    Note:
    1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
    2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.1 to avoid compatibility issue.
    3. HD audio through DisplayPort cannot be switched independently.
    4. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
    5. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.

Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse
Connectors
Console Ports 2 x USB Type A Female (Black)
1 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
4 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Switches
Selected 4 x Pushbutton
LEDs
On Line /Selected 4 (Orange)
USB Link 4 (Green)
Emulation
Keyboard / Mouse USB
Video 3840 x 2160 @ 30Hz
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC5V:2.99W:57BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.91 kg ( 2 lb )
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
