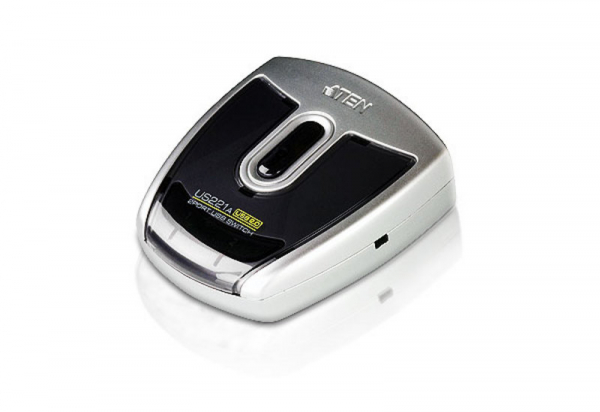

Aten US-221A – 2-Port USB 2.0 Peripheral Switch
The US221A is a 2-port USB 2.0 Peripheral Switch that allows up to 2 computers to share the use of a single USB peripheral device (such as a printer scanner mass storage drive etc.) on a one-at-a-time basis.
The peripheral focus can be given to a computer manually by using pushbuttons on the switch using the software-based configuration utility or by the Auto Switch function.
Compatible with both Windows and Mac and with multifunction printer support the US221A is the ideal way to share the latest USB 2.0 peripherals in a multimedia office environment.
| Console Connection || 2 |
| PC Selection || Pushbuttons Software Auto Switch |
| Connectors || Computer || 2 x USB Type B |
| Device || 1 x USB Type A |
| LEDs || Devices || 1 (Orange) |
| Selected || 2 (Green) |
| Switches || 1 x Pushbutton |
| Power Supply || USB Bus Powered |
| Environment || Operating Temp. || 5 - 40 °C |
| Storage Temp. || -20 - 60 °C |
| Humidity || 0-80% RH Non-condensing |
| Physical Properties || Housing || Plastic |
| Weight || 54 g |
| Dimensions |
( L x W x H )
| 7.20 x 6.60 x 2.50 cm |
- 1 x 2-Port USB 2.0 Peripheral Switch
- 1 x USB Type A to USB Type B Cable(1.8m)
- 1 x Installation disk
- 1 x User Instructions
