Name: Aten 2 Port HDMI 4K Video Splitter VS182A-AT-U
Brand: ATEN
SKU: VS182A-AT-U
Price: 75.90 AUD
Availability: OutOfStock

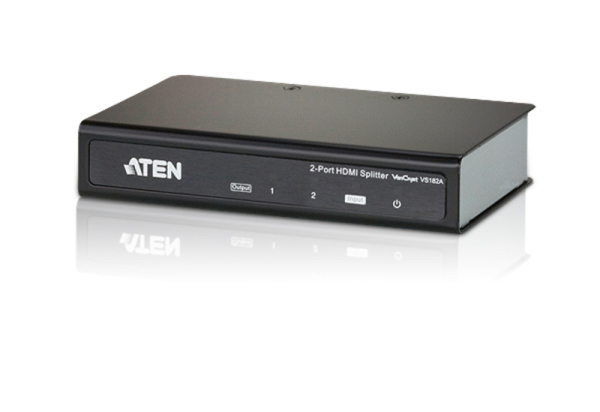

Aten 2 Port HDMI 4K Video Splitter VS182A-AT-U

Sku: VS182A-AT-U

Brand: ATEN

Category: Network Accessories

$75.90

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

The VS182A 2-Port HDMI Splitter connects one HDMI source to two displays simultaneously, supporting Ultra HD 4K, 3D, Deep Color, and Dolby True HD for versatile applications.

We Accept

Description

Manufacture: Aten | Model: VS182A-AT-U

The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Package Contents

1x VS182A 2-Port HDMI Splitter
1x Power Adapter
1x HDMI Cable
1x User Instructions

Connects one HDMI source to two HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP Compatible
Supports resolutions of up to Ultra HD 4k x 2k
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15 m (24 AWG)
Supports max. data rate of 10.2 Gbps
Plug-and-play – no software installation required

Note: Long distance transmission up to 20m (with ATEN 2L-7D20H)

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3m @3840x2160@30Hz (4:4:4)
Video Output
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15m @3840x2160@30Hz (4:4:4)
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K); HDCP Compatible
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	1 x HDMI Type A Female (Black)
Output	2 x HDMI Type A Female (Black)
Connectors
Power	1 x DC Jack
Environmental
Operating Temperature	0-50 °C
Storage Temperature	-20 - 60 °C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.31 kg ( 0.68 lb )
Dimensions (L x W x H)	12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Carton Lot	20 pcs
Power Consumption	DC5.3V:3.12W:15BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
